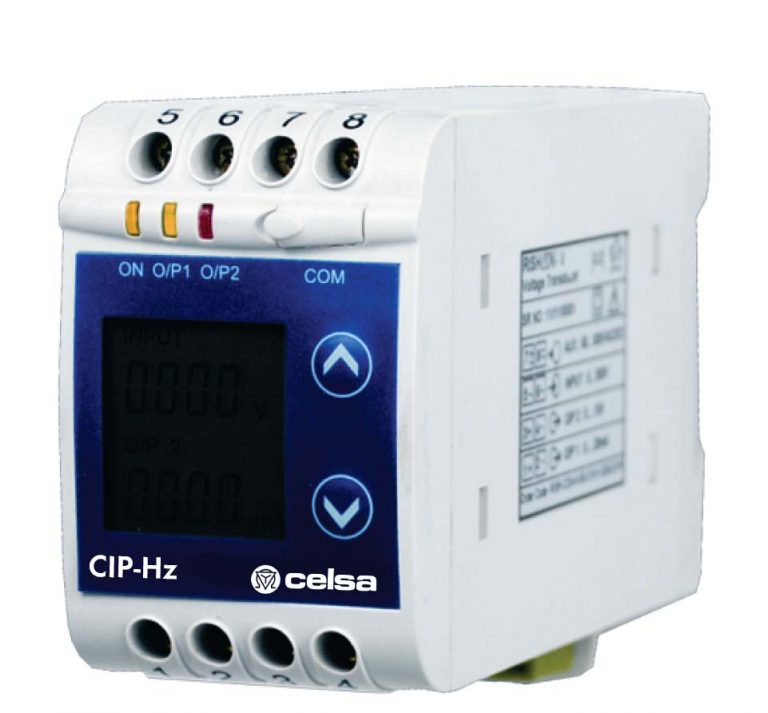

CIP-HZ - Transducers of Frequec

• Type: Frequency
• Class: 0.2
• Dimensions: 65.5 x 43.75 x 106.5 mm

Product Features:

The CIP-Hz transducer is used for frequency measurement. The output signal is proportional to measured frequency and is either load independent DC current or DC voltage.

• Onsite selectable output type (DC current/ DC voltage)
• Accuracy class 0.2 (IEC/EN60688)
• Wide Auxiliary power supply which can be accept any between 60 - 300V AC/DC or 24V - 60V AC/DC
• Output response time < 400ms
• Fast and easy installation on DIN RAIL or onto a wal or in a panel using optional screw hole bracket
• Connection terminal: Conventional screw type
• Fully onsite programmable input range
• Seven segment LCD Display
Optional
• Available in single or dual output type
• RS485 (MODBUS) Communication

Download Technical Data Here
