Graphite Coated Anode Electrode Disk (D16 mm or 19 mm) for CR20XX Coin Cells 100 pcs / pack - bccf-cms

Graphite Coated Anode Electrode Disk (D16 mm or 19 mm) for CR20XX Coin Cells 100 pcs / pack - bccf-cms

MPN: : \bccf-cms16

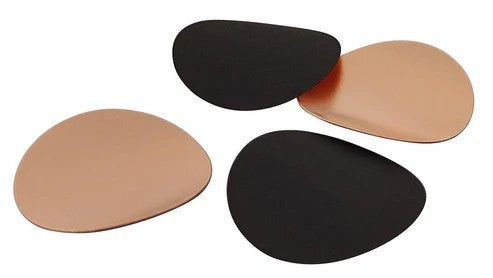

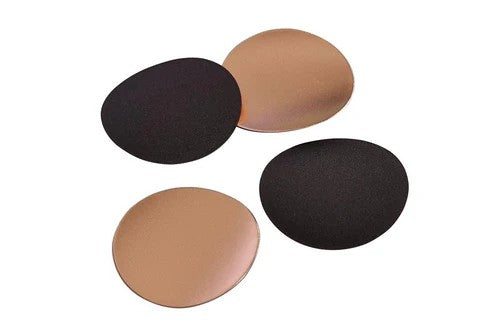

bccf-cms is a pre-cut graphite coated electrode disk with either 16 mm or 19 mm for CR20XX anodes of coin cell battery R&D and split testing cells


SPECIFICATIONS:
Material
  • Graphite Coated Copper Foil
Diameter
  • 16 mm or 19 mm
Thickness
  • 68 um
Coating
  • Single side coating
Copper Foil
  • Thickness 9 um
Coating Layer Density
  • 7.78 +/- 0.15 mg / cm^2
Surface Density
  • 8.79 mg / cm^2
Active Materials Mass Proportion
  • 96%
Capacity
  • 310 mAh / g

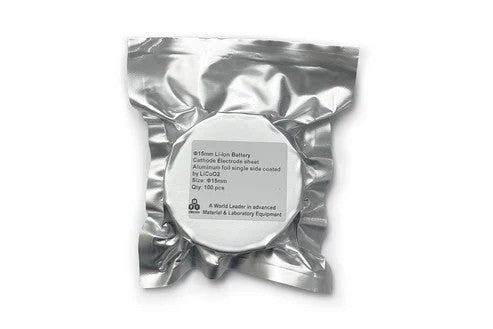

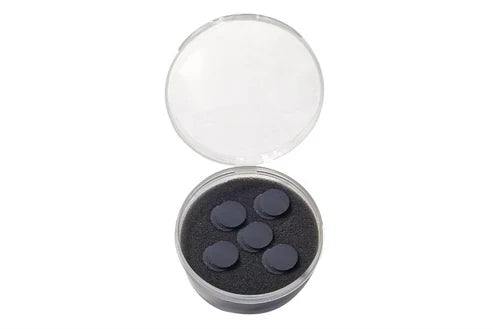

Packing 100 pcs electrode disc is packed in a plastic case with a vacuum
Operation
  • The package must be opened inside a glove box with Argon Gas and moisture less than 2%RH.
Note
  • This product is not manufactured by MTI. We only sell small quantities to research for developing new materials. If you have any questions on IP conflict, we will forward your inquiry to the manufacturer.
