Li-Ion Battery Anode - Single Layer CMS Graphite Coated on Cu Foil (241 L x 200 W x 0.05Thickness, mm) 5 sheets/bag -bccf-ss

MPN: bccf-ss

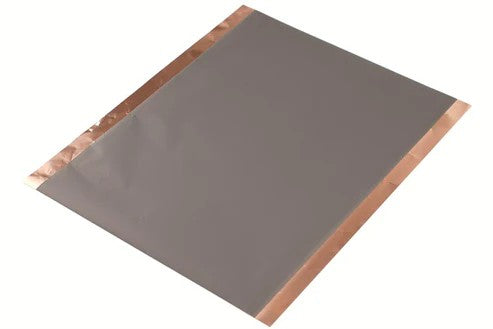

This electrode sheet is based on copper foil coated with graphite coating on a single side for Li-Ion battery application. The electrode has been rolling pressed with high compaction density.

Specifications

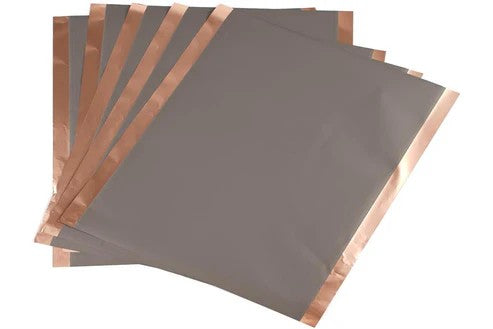

• 5 sheets/bag
• Current collector (substrate): Copper foil, 9 micron
• Anode material: Composite Graphite
• Binder: SBR+CMC (2.5% SBR, 1.8% CMC), conductive carbon" Super P, 2.5%
• Single-side material density: 6.3 mg/cm2
• Compaction density: 1.2 g/cm3
• Active Material Proportion in Powder: 93.2%
• Length: 241mm, Width: 200mm (coating width of 175 mm, left and right-hand side 12.5 mm without coating)
• Total Thickness: 50 um  (single-side coated)
• Foil Thickness: 9 um
• Specific Capacity: 330 mAh/g {Area Capacity: 1.903 mAh/cm2}
• Single side coated
• Qty: 5 Sheets/bag
• Warning:  Please dry in vacuum oven before using and store it inside the glovebox after opening the package. The recommended temperature and time can be 80-120 °C for 6-12h.
