Li1.5Al0.5Ge1.5P3O12 (LAGP) Ion Conductive Ceramic Sheets w/ optional size - LAGP

Li1.5Al0.5Ge1.5P3O12 (LAGP) Ion Conductive Ceramic Sheets w/ optional size - LAGP

Shape

The Li1.5Al0.5Ge1.5P3O12 Conductive Ceramic Separator>is a key enabling component for Li-ion Metal Air Batteries. It protects the lithium metal used in the anode from oxidation by providing an impermeable barrier against air and moisture while permitting the transfusion Lithium ions.

SPECIFICATIONS

Chemical Composition
  • Li1.5Al0.5Ge1.5P3O12 LAGP

Melting Point
  • 1350oC

Shapes & Sizes
(Please select from Product Options)

Round: 19mm or 25mm Dia

Square: 2 Inch x 2 Inch

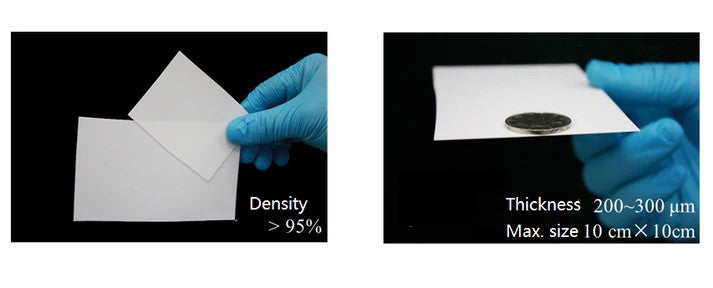

Thickness
  • 300um ( 0.30 mm )

Density
  • > 95 % theoretical

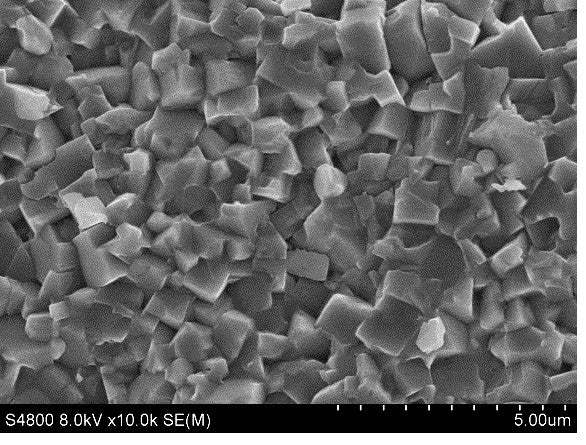

Grain size
  • ~25 micron

Ionic Conductivity
  • 4.5 ×10-4S/cm at 25 Room Temperature

Physical Properties
  • Stable in both air and water

Application Notes

Assembly of Li-Air Batteries, please click on the picture below for reference

Options
Other sizes (e.g. for use in EQ-STC-LI-AIR and STC-ZINCAIR-W Split Test Cells) available upon request, please contact MTI for additional details.

Note
  • This product is not manufactured by MTI. We only sell small quantities to research for developing new materials. If you have any questions on IP conflict, we will forward your inquiry to the manufacturer.

    Video: How to use the split cell

Video: How to make solid-state battery
