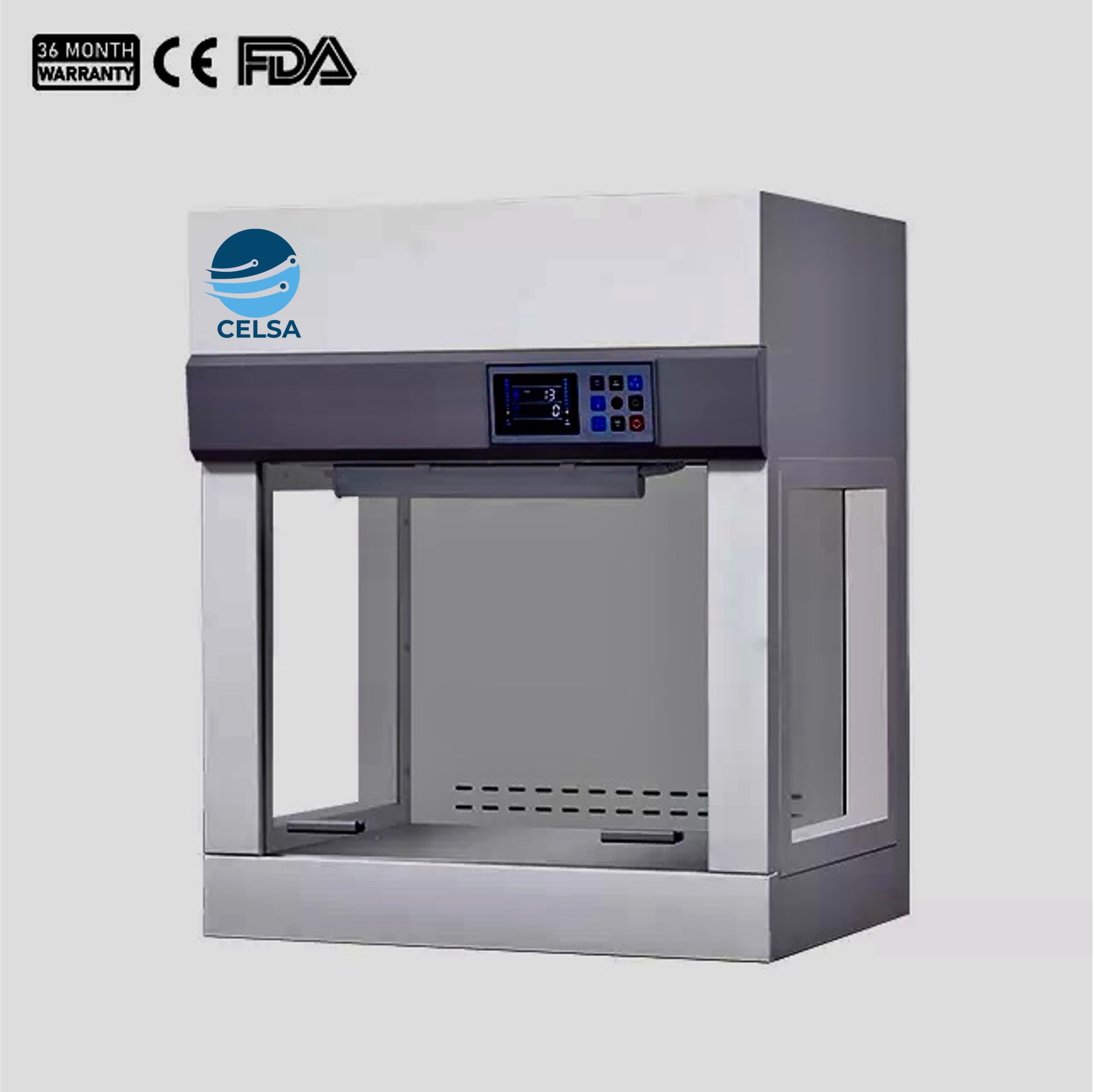

Mini Benchtop Fume Hood FH-500C – Compact & Portable
Mini Benchtop Fume Hood FH-500C – Compact & Portable
The FH-500C mini benchtop fume hood is a compact and flexible solution designed for small labs, classrooms, and research environments. Its ductless design allows contaminated air to be filtered and recirculated safely, eliminating the need for external ventilation systems.
Airflow Direction: Vertical
Max Opening: 310 mm
Colony Count: ≤0.5 pcs/vessel (φ90 mm petri dish)
Airflow Velocity: 0.2–0.6 m/s (intelligent multi-level adjustable)
Noise Level: ≤62 dB
Standard Accessories: LED lamp, UV lamp, Activated carbon filter
Product Overview
Equipped with an intelligent microprocessor control system, the unit features an LCD display that shows real-time operating status, ensuring safe and efficient performance. The adjustable airflow system allows users to control air velocity based on application needs.
The activated carbon filtration system effectively removes harmful fumes, particles, and odours, helping protect laboratory personnel and maintain a clean working environment.
Specifications
| Model | FH-500C |
|---|---|
| External Size (W×D×H) | 580 × 460 × 700 mm |
| Internal Size (W×D×H) | 480 × 340 × 370 mm |
| Max Opening | 310 mm |
| Airflow Direction | Vertical |
| Air Velocity | 0.2 – 0.6 m/s (adjustable) |
| Control System | Microprocessor controller with LCD display |
| Filtration System | Activated carbon filter |
| Work Surface | 304 stainless steel (max load 10 kg) |
| Front Window | 5 mm UV-resistant tempered glass (manual) |
| Lighting | LED lamp (8W × 1) |
| UV Lamp | 8W × 1 |
| Power Supply | AC 220V ±10%, 50/60Hz; 110V ±10%, 60Hz |
| Power Consumption | 110 W |
| Noise Level | ≤62 dB |
| Colony Count | ≤0.5 pcs/vessel (φ90 mm petri dish) |
| Vibration | ≤3 µm |
| Net Weight | 36 kg |
| Gross Weight | 41 kg |
| Shipping Size | 710 × 590 × 850 mm |
| Shipping Volume | 0.36 m³ |
Key Features
- Space-saving benchtop design
- Easy to move with built-in handle
- Plug-and-play setup with no ducting required
- Safe operation with UV lamp interlock
- Reliable and low-maintenance performance
Operating Features
- Adjustable air speed with intelligent control
- UV lamp automatically switches off when front window is opened
- LCD controller with timing and status display
- Smooth sliding front glass for safe operation
