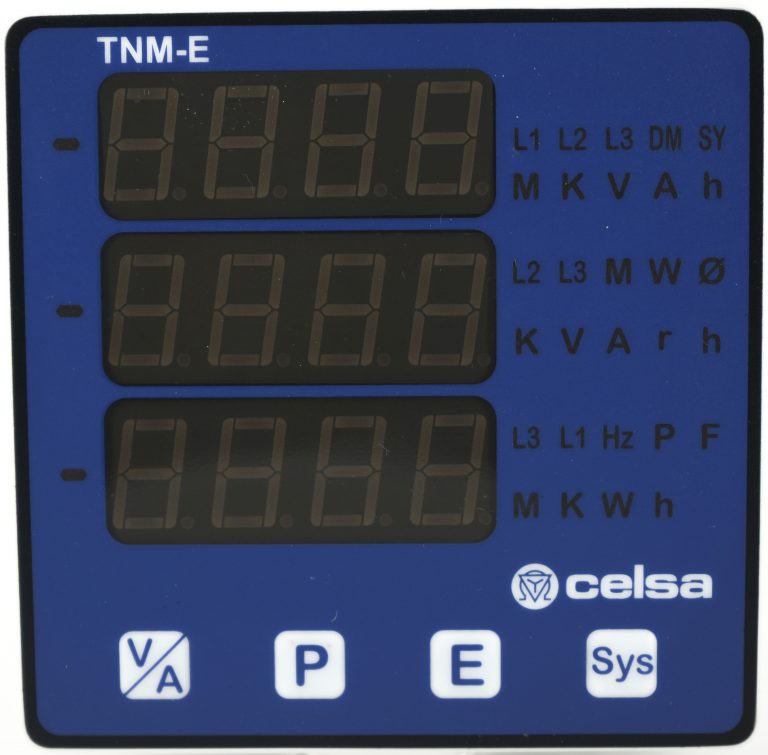

TNM96E Energy Multimeter

• Fast and Easy Installation on panel with self clicking.

• True RMS measurement.
• 3 Line 4 Digits ultra bright LED Display (up to 9999).
• On site Programmable CT/PT Ratios.
• User selectable CT Secondary 1A/5A.
• User selectable PT Secondary from 100 VLL to 500 VLL.
• User selectable 3ph3wire / 3ph4wire / single phase Network.
• Programmable Energy format and Energy rollover count
• Wide auxillary Power Supply which can accept any input between 40V – 300V AC/DC or 12V – 48V DC.
• Storage of MIN / MAX values.
• Measurement and Display of RPM, Run hours, On hours, No. of interruption.
• Optional: MODBUS (RS485) Communication / Pulse output

Dimensions	96 x 96 x 55 mm mm
User selectable	3 phase 3 wire / 3 phase 4 wire / Single phase
Accuracy class	1
