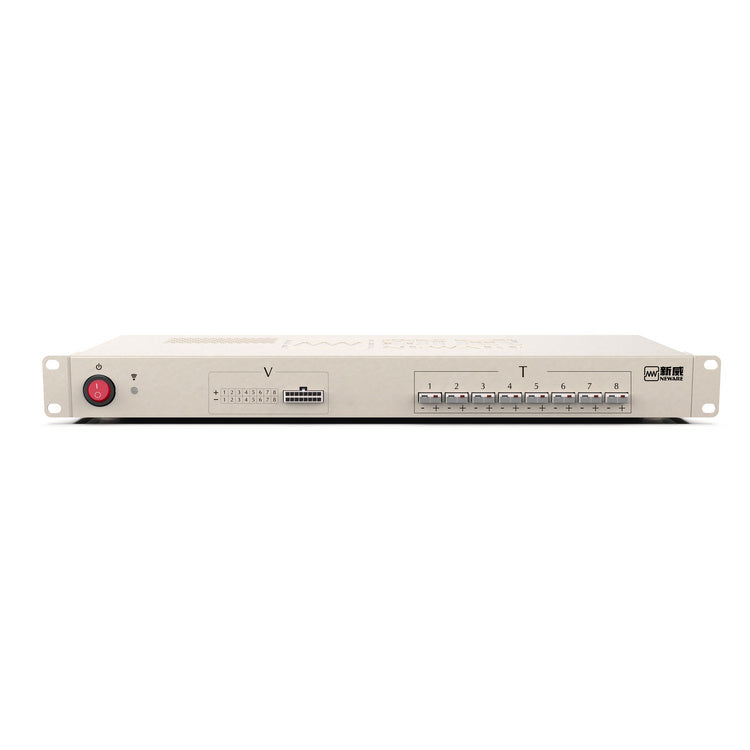

AUX voltage and temperature measurement Unit 2 x 8 Channel AUX Unit for measurement of auxiliary voltage and temperature
Features:
8 channels for AUX voltage measurements

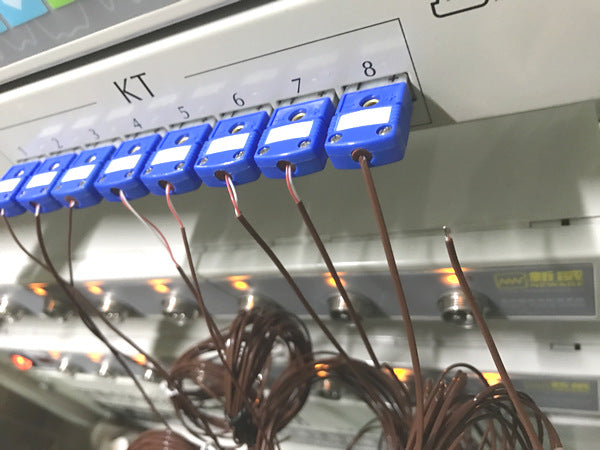

8 channels for thermocouple temperature measurements

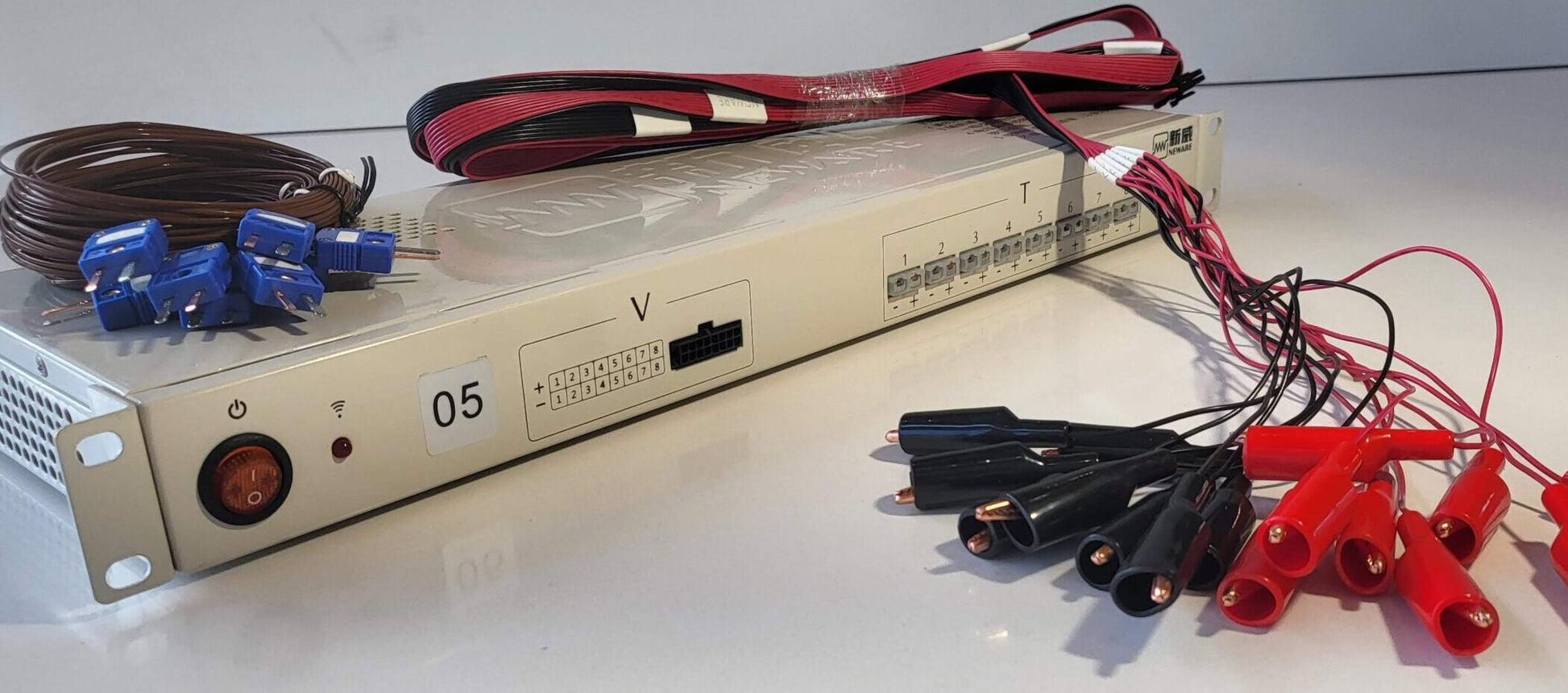

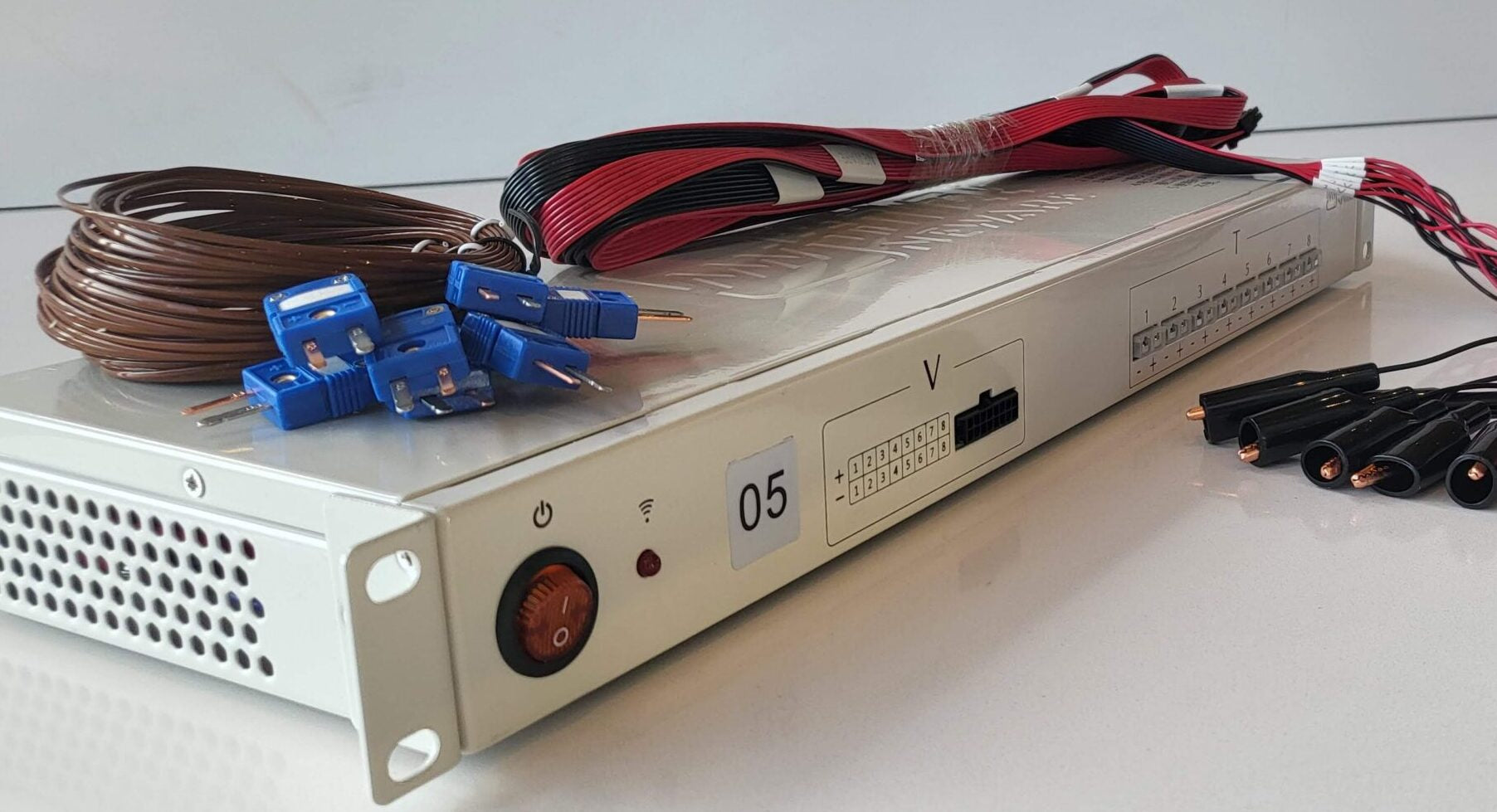

Comes with 8 thermocouples and 8 cables with crocodiles
Data recording can easily be connected with a specific battery tester channel and saved into one single file
Description:
This unit has 8 auxiliary voltage measurement (0-5V with 5 mV resolution) that can be used for various purposes like reference electrode measurements or additional voltage measurements on a battery experiment. It also has 8 channels for thermocouple temperature measurements (0.1 degree resolution).

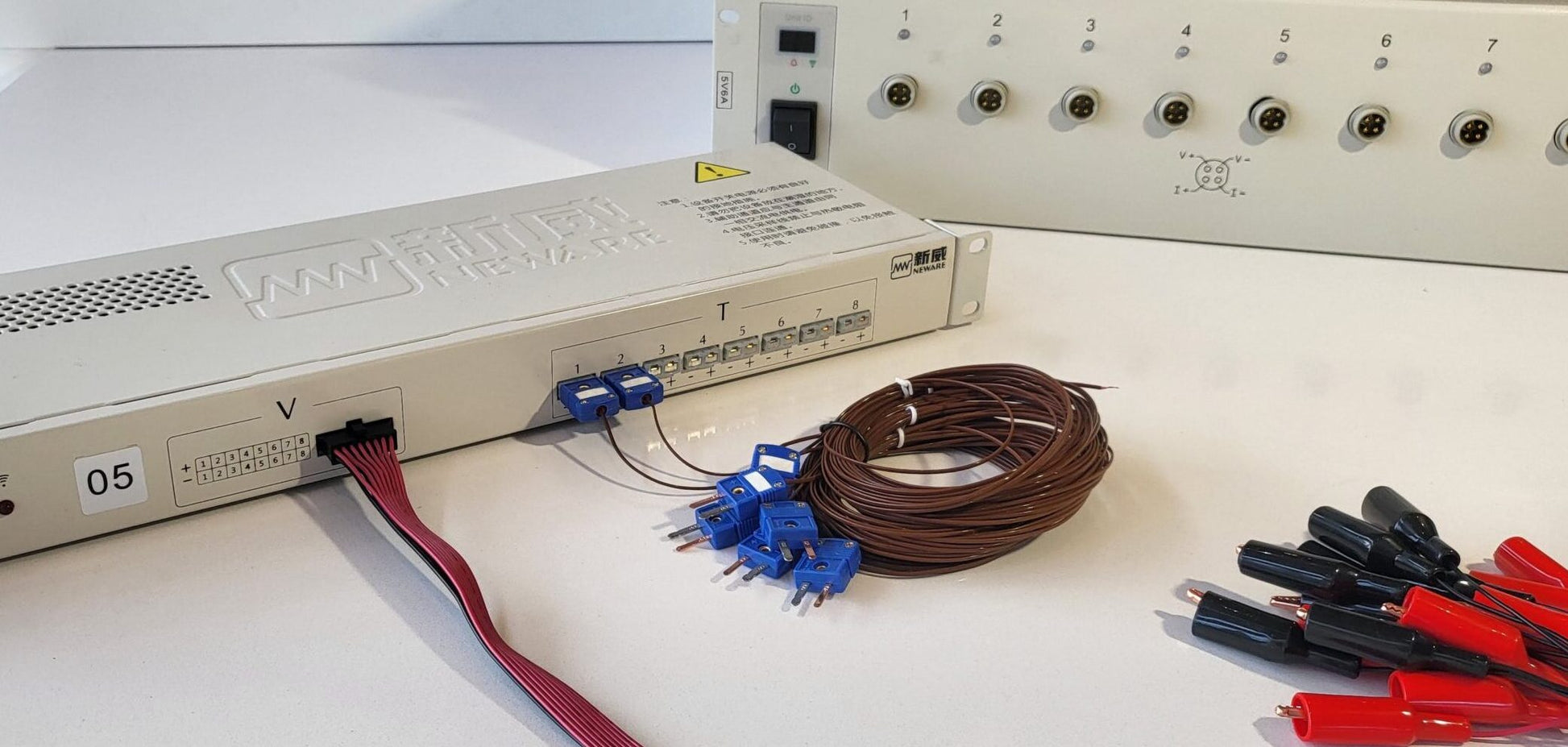

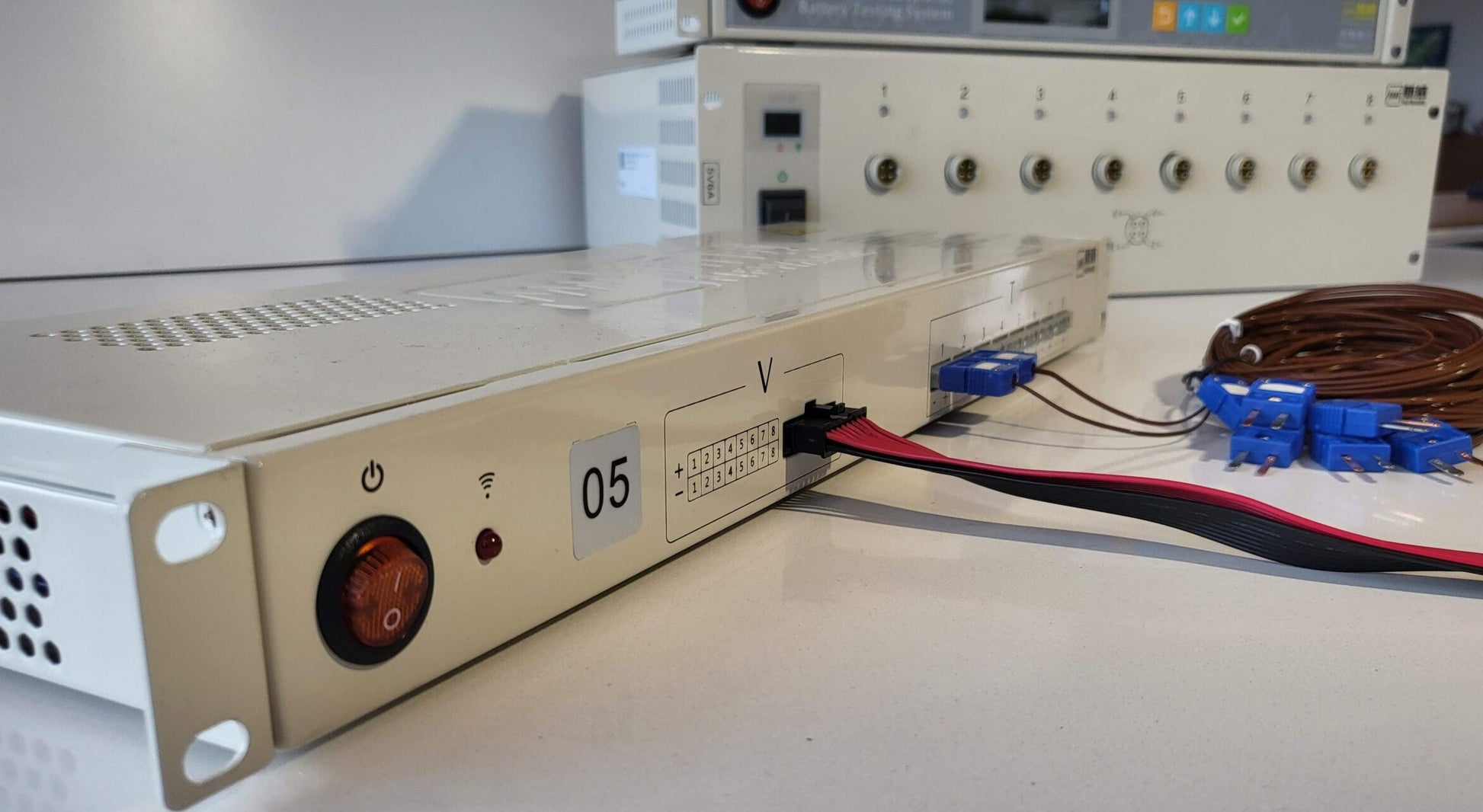

The AUX unit is connected with the control unit. With a few steps in the battery tester software individual channels of the AUX unit can easily be connected with a specific battery tester channel whereby AUX voltage and/or temperature is recorded and saved together with battery test data. Unit is comes ready-to-use with 8 thermocouples and 8 crocodiles wires.
