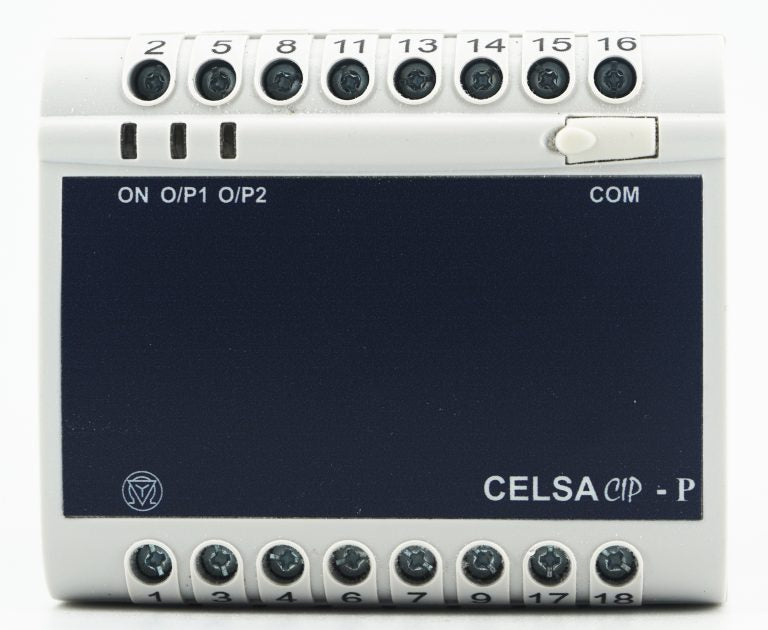

CIP- P - Transducers of active / reactive power
CIP- P - Transducers of active / reactive power
- Type: active or reactive power
- Class: 0.2
- Load: balanced or unbalanced
- Dimensions: 65.5 x 78.5 x 106.5 mm
Product Features:
The CIP-P is used to measure and convert active or reactive power in to a single-phase or three-phase AC system with balanced or unbalanced load into a proportional load independent DC current or voltage output signal.
• True RMS measurement
• Onsite configurable as active or reactive power
• Accuracy class 0.2 (IEC/EN 60688)
• Wide Auxiliary power supply which can be accept any between 60 - 300V AC/DC or 24V AC/DC
• Output response time < 700ms standard
• Fast and easy installation on DIN RAIL or onto a wall
• Fully onsite programmable input voltage range and input current range
• Seven segment LCD Display
Optional
• Single or dual output type
• Onsite selectable output type (DC current/ DC voltage)
• RS485 (MODBUS) Communication
