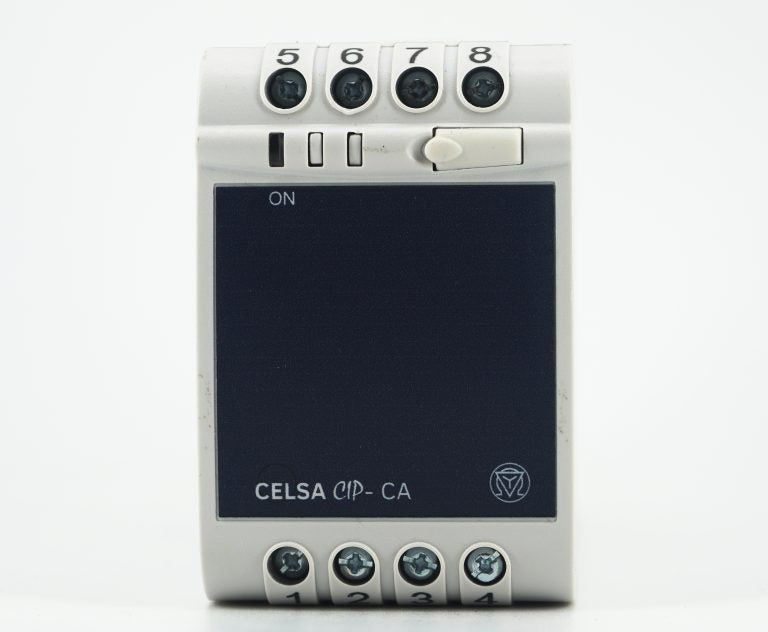

CIP-V/I - Transducers of voltage or current

• Type: voltage / current DC
• Class: 0.2
• Dimensions: 65.5 x 43.75 x 106.5 mm

Product Features:

The transducers CIP-V / CIP-I are used to measure and convert AC voltage or current input into a load independent DC current or voltage output signal. Output signal generated is proportional to the root mean square value of the input current or voltage.

• True RMD Measurement
• Onsite selectable output type (DC current/ DC voltage)
• Accuracy class 0.2 (IEC/EN60688)
• Wide Auxiliary power supply which can be accept any between 60 - 300V AC/DC or 24V - 60V AC/DC
• Output response time < 400ms
• Fast and easy installation on DIN RAIL or onto a wall or in a panel using optional screw hole bracket
• Connection terminal: Conventional screw type
• CIP-V with LCD display
Optional
• Fully onsite programmable input range (for CIP-V) and input current range for CIP-I
• Available in single or dual output type
• Seven segment LCD Display
• RS485 (MODBUS) Communication

Download Technical Data Here
