Conductive Graphene Powder for Lithium Ion Battery or Fuel Cell/Electrolyzer, 50g/bottle, EQ-Lib-CGnP

Conductive Graphene Powder for Lithium Ion Battery or Fuel Cell/Electrolyzer, 50g/bottle, EQ-Lib-CGnP

EQ-Lib-CGnP Graphene is a conductive material when preparing a Li-ion battery. It has strong oxidizability, self-lubrication, and plasticity as well as good conductivity and adhesion under high temperatures.
.
  • If you have purchased an MTI product, look for GHS elements of pictograms, signal word hazard phrases and codes, etc. Please click to download SDS Information.

Specifications:

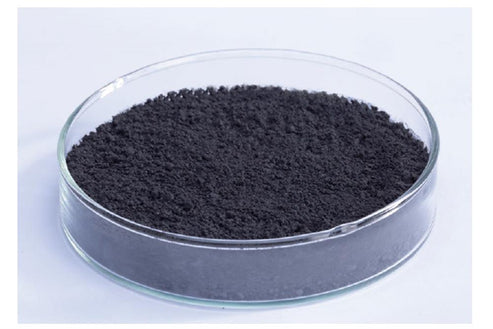

Appearance Black Powder
Applications:
  • For preparing Li-ion battery electrode material and conducting material, for example:
    • Cathode: Cathode Powder+Conductive Graphite+PVDF+NMP
    • Anode: Anode Powder+Conductive Graphite+PVDF+NMP (or SBR+CMC)
  • Corrosion resistance to Potassium Hydroxide.
  • For anti-corrosion and high-temperature lubricant
  • For preparing carbon resister, conduct dry film and electrolyte.
  • Applied in the rub and plastic as bulking agent.
  • Applied in the raw material of alloy.
  • Applied in the chemical industry as catalyst.
Notes:
  • Please click to see Procedure for Preparing Anode & Cathode Electrode Slurry.
  • Please keep the powder in vacuum box to avoid moisture.
  • Please bake the powder in a vacuum oven at 120 - 150 °C before making slurry and coating to ensure max. Capacity.
  • Application Notes:
    • Please click to see Procedure for Preparing Anode & Cathode Electrode Slurry.
    • Please keep the powder in vacuum box to avoid moisture.
    • Please bake the powder in a vacuum oven at 120 - 150 °C before making slurry and coating to ensure max. capacity.
Fixed Carbon (%)
≥99.98
Granularity (um)
5-8
Moisture Content (um)
2
Fe (ppm)
 150
Bulk Density (g/ml)
 0.01-0.02
Package

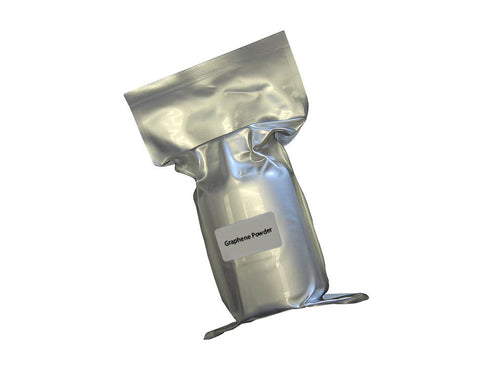

 Container Sealed in Al Vacuumed Bag
