Hanna Instruments
edge® Multiparameter EC, TDS, Salinity Meter - HI2030
edge® Multiparameter EC, TDS, Salinity Meter - HI2030
Couldn't load pickup availability
The edge meter is only 0.5” thick yet rich in features to accommodate the needs of a vast amount of customers.
Manual
Multiparameter EC/TDS/Salinity Meter - HI2030
Specifications
| SKU | HI2030-01 |
|
Name |
® Multiparameter EC/TDS/Salinity Meter - HI2030 |
| pH Range | -2.00 to 16.00 pH, -2.000 to 16.000 pH* |
| pH Resolution | 0.01 pH, 0.001 pH* |
| pH Accuracy | ±0.01pH, ±0.002 pH* |
| pH Calibration | Automatic, up to 3 points (5 points*) calibration, 5 standard (7 standard*) buffers available (1.68*, 4.01 or 3.00, 6.86, 7.01, 9.18, 10.01, 12.45*) and 2 custom buffers* |
| pH Temperature Compensation | Automatic -5 to 100º C (23 to 212º F) (using integral temperature sensor) |
| EC Range | 0.00 to 29.99 µS/cm, 3.00 to 29.99 µS/cm, 30.0 to 299.9 µS/cm, 300 to 2999 µS/cm, 3.00 to 29.99 mS/cm, 30.0 to 200.0 mS/cm, up to 500.0 mS/cm, absolute conductivity ‡ |
| EC Resolution | 0.01 µS/cm, 00.1 µS/cm, 0.01 µS/cm, 0.01 mS/cm, 00.1 mS/cm |
| EC Accuracy | ±1% of reading (±0.05 µS/cm or 1 digit, whichever is greater) |
| EC Calibration | 1 Cell Factor calibration; 6 standards available: 84, 1413 µS/cm, 5.00, 12.88, 80.0, 111.8 mS/cm, 1 point offset: 0.00 µS/cm |
| TDS Range | 0.00 to 14.99 ppm (mg/L), 15.0 to 149.9 ppm (mg/L), 150. to 1499. ppm (mg/L), 1.50 to 14.99 g/L, 15.0 to 100.0 g/L, up to 400.0 g/L absolute TDS ‡ (with 0.80 factor) |
| TDS Resolution | 0.01 ppm, 0.1 ppm, 1 ppm, 0.01 g/L, 0.1 g/L |
| TDS Accuracy | ±1% of reading (±0.03 ppm or 1 digit, whichever is greater) |
| TDS Calibration | through EC calibration |
| EC/TDS Temperature Compensation | Automatic -5 to 100 ºC (23 to 212 ºF); NoTC - can be selected to measure absolute conductivity. |
| Temperature Correction Coefficient | 0.00 to 6.00% / ºC (for EC and TDS only). Default value is 1.90% / ºC |
| EC to TDS Conversion Factor | 0.40 to 0.80 (default value is 0.50) |
| Salinity (% NaCl) Range | 0.0 to 400.0% NaCl * |
| Salinity (% NaCl) Resolution | 0.1% NaCl |
| Salinity (% NaCl) Accuracy | ±1% of reading |
| Salinity (% NaCl) Calibration | Single point with HI 7037L Standard |
| Salinity (PSU) Range | 2.00 to 42.00 PSU * |
| Salinity (PSU) Resolution | 0.01 PSU, |
| Salinity (PSU) Accuracy | ±1% of reading |
| Salinity Range | 0.0 to 80.0 g/L * |
| Salinity Resolution (ppt) | 0.01 g/L |
| Salinity Accuracy (ppt) | ±1% of reading |
| Dissolved Oxygen Measurement Type | polarographic |
| Dissolved Oxygen Range | 0.00 to 45.00 ppm (mg/L), 0.0 to 300.0% |
| Dissolved Oxygen Resolution | 0.01 ppm (mg/L), 0.1% |
| Dissolved Oxygen Accuracy | ±1.5% of reading |
| Dissolved Oxygen Calibration | One or two points at 0% (HI 7040) and 100% (water saturated air) |
| Dissolved Oxygen Temperature Compensation | 0.0 to 50.0 ºC (32.0 to 122 ºF) |
| Salinity Compensation | 0 to 40 g/L 1 g/L |
| Altitude Compensation | -500 to 4,000 m (-1640 to 13120’) 100 m (328’) |
| Temperature Range | -20.0 to 120.0 ºC, -4.0 to 248.0 °F |
| Temperature Resolution | 0.1 °C, 0.1 °F |
| Temperature Accuracy | ±0.5 °C, ±1.0 °F |
| EC/TDS Probe | HI 763100 EC/temperature probe |
| Logging Type | Manual Log on Demand (Max. 200 logs); Manual Log on Stability (Max. 200 logs); Interval Logging 100 lots, Max. 600 logs/lot |
| Logging Memory | Up to 1000 records |
| Connectivity | 1 micro USB port for charging and PC connectivity, 1 USB port for storage |
| GLP | yes |
| Battery Type/Life | Built-in rechargeable battery with up to 8 hours of continuous use |
| Power Supply | 5 VDC adapter (included) |
| Environment | 0 to 50°C (32 to 122°F), RH max 95% non-condensing |
| Dimensions | 202 x 140 x 12.7mm (8” x 5.5” x 0.5”) |
| Weight | 250 g (8.82 oz) |
accuracy and usability.
Digital Electrodes
edge electrodes are highly advanced, featuring a built-in microchip
Sensor Check
When used with Hanna’s pH electrodes equipped with a matching pin, edge constantly checks the impedance of the pH measuring electrode to notify you in real time in the event of glass breakage.
3.5 mm Probe Input
edge® is incredibly versatile.

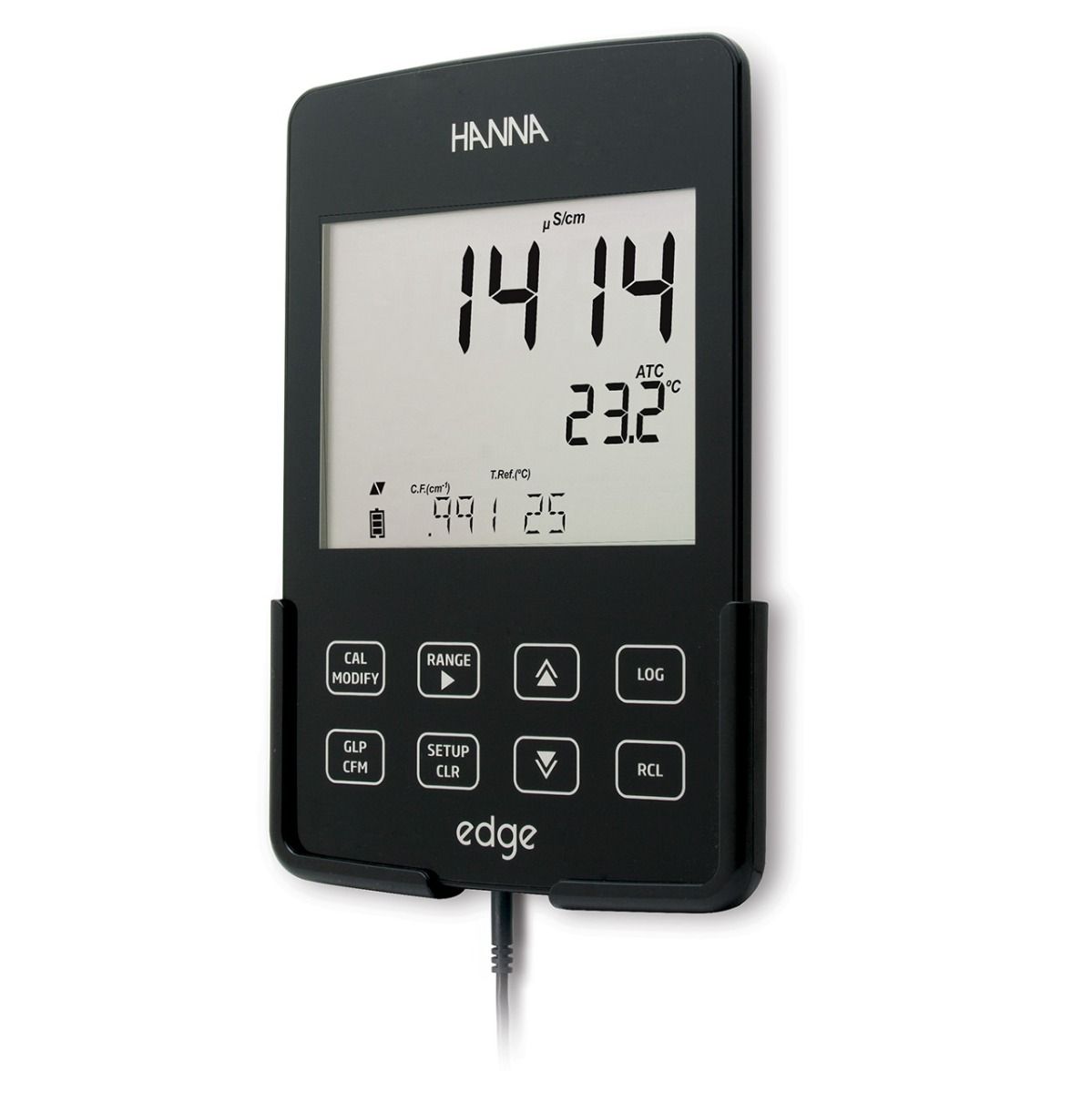

Wall Mount

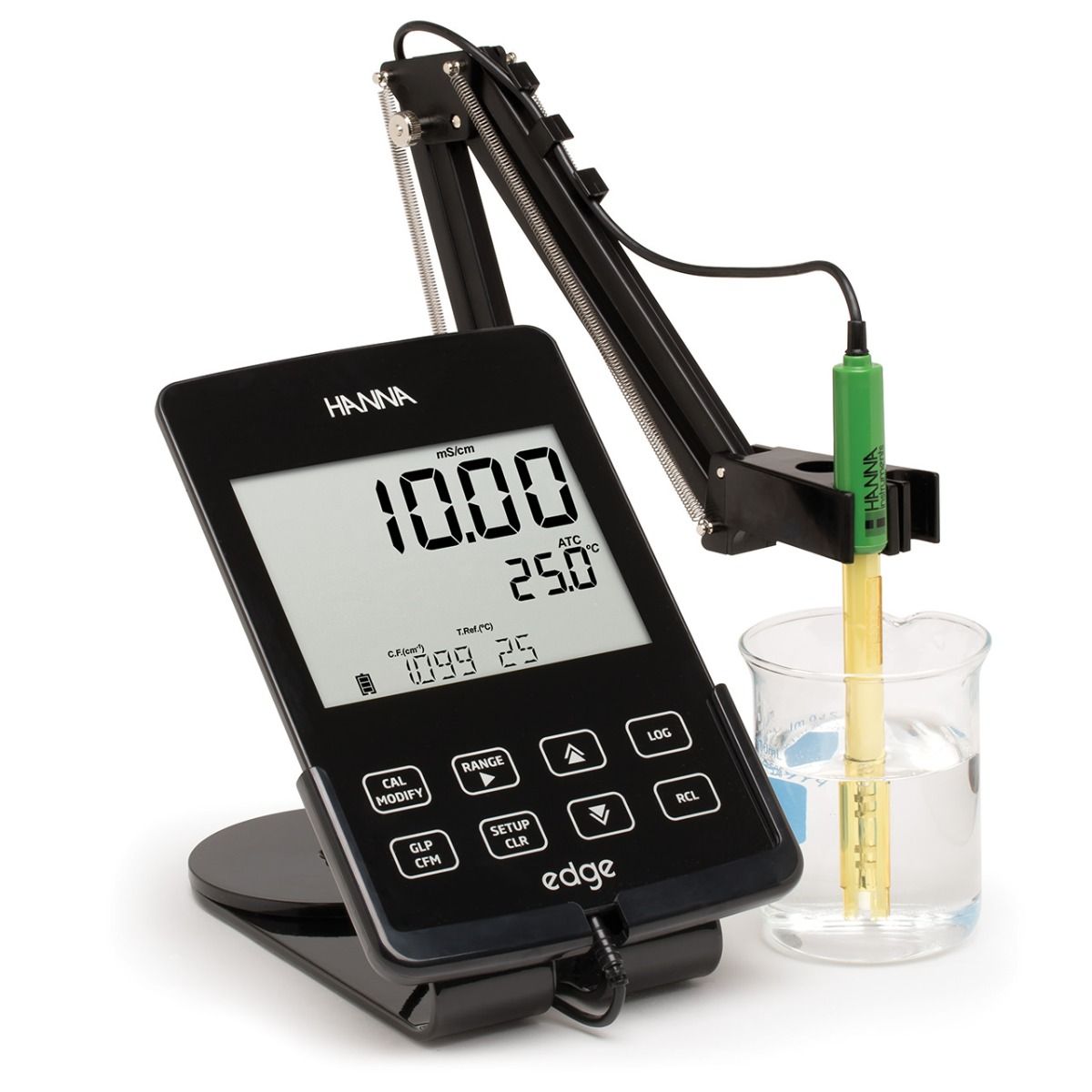

Cradle and Electrode Holder

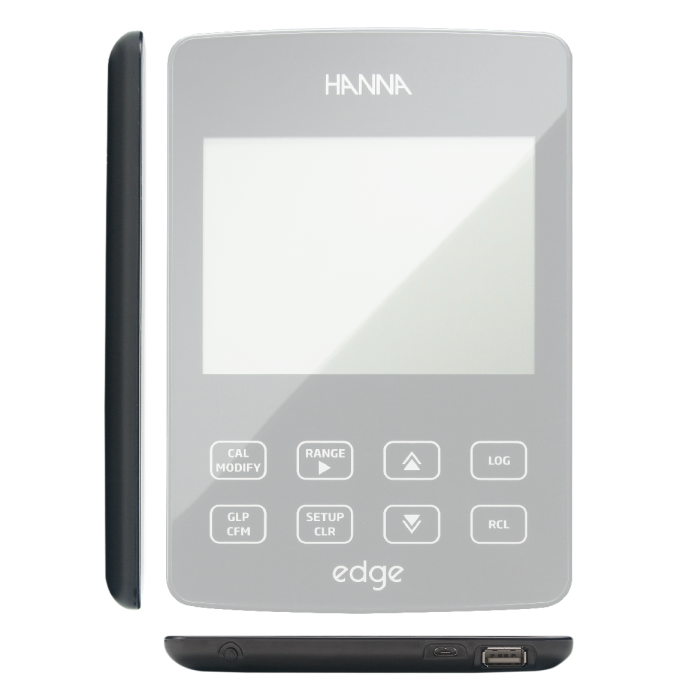

edge® is incredibly thin and weighs only 8.8 oz., has an 8 hour battery life, and dual USB inputs.
Two USB Ports
edge includes one standard USB and a second micro USB port for file export and for charging when the cradle is not available.
Data Logging
edge allows you to store up to 1000 log records of data. Data sets include readings, GLP data, date and time.
Two Operating Modes
edge can be used in Extended or Basic Operating Modes. Extended Mode enables all features available while the Basic Mode reduces the amount of features to a very simple operation. For example, in extended mode edge offers 5 point calibration with 2 custom buffers while in basic mode calibration can only be performed to 3 points with 5 preprogrammed buffers.
Video
