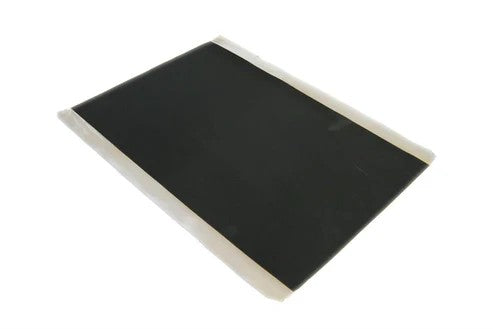

Hard Carbon Double-Side Coated Al Foil for Sodium Ion Battery Anode (241 L x 200 W x 0.16 Thickness mm) 5 sheets/bag - bcaf-BHCds

Hard Carbon Double-Side Coated Al Foil for Sodium Ion Battery Anode (241 L x 200 W x 0.16 Thickness mm) 5 sheets/bag - bcaf-BHCds

This electrode sheet is based on aluminum foil coated with hard carbon on a single side and is used as anodes in Na-Ion battery.
There are 5 sheets in a package bag.

SPECIFICATIONS:

  • Total Area: 241 mm L x 200 mm W x 110 um T
  • Coating Area: 241 mm L x 175 mm W (Left and Right-hand side 12.5 mm without coating)
  • Double side coating
  • Current collector (substrate): Aluminum foil, 16 um thickness
  • Coating area density: 12.6 ± 0.4 mg/cm2
  • Compaction density: 0.9 g/cm3
  • Coating thickness: ~143 um
  • Active Material Proportion: 92% [2% SuperP carbon, 6% PVDF in NMP)
  • Specific Capacity: 280±30mAh/g (Electrolyte: 1.0M LiPF6 in EC:DMC:EMC=1:1:1, please order it from here LBE-EDE111)
  • Qty: 5 sheets / bag
  • Warning: Please dry in vacuum oven before using and store it inside glovebox after opening the package
  • SDS for Aluminum Foil. SDS for Hard Carbon
  • Application Note:
    • Please baking at 120oC under a vacuum oven before coating.
    • MTI does not manufacture this product. We only provide a small quantity to research to develop a new generation battery,
    • MTI is not responsible for any IP issues. If anyone feels the product conflict with your IP, please inform us, we may stop selling at any time.
