MTI Corporation

Hard Carbon Powder for Sodium Ion Battery Anode, 200g/bottle, SIB-BHC300

Hard Carbon Powder for Sodium Ion Battery Anode, 200g/bottle, SIB-BHC300

MPN: SIB-BHC300

With its excellent cycling performance, SIB-BHC hard carbon (HC) can be used as anode material for lithium and sodium-ion batteries, especially for sodium-ion batteries.
SIB-BHC300 provides ≥300 mAh/g first discharge capacity and ≥81.0 % first discharge efficiency.

Specifications:

Package
  • 200g/bottle

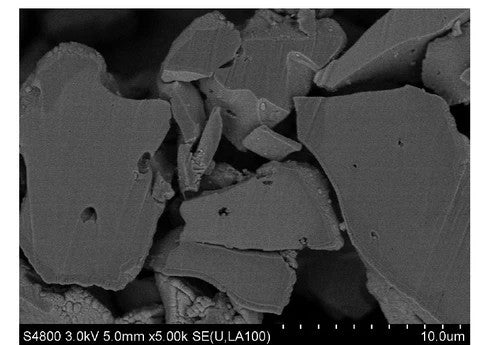

Particle sizes (D50)
  • 3.07.0 μm
Specific Surface Area
  • 8 m2/g

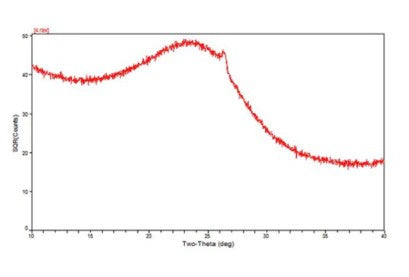

XRD
No graphite phase was observed in the BHC300 sample
First discharge capacity
  • ~300 mAh/g.[Test condition: 94wt% BHC300, Super P carbon: 3wt%, PVDF: 3wt%]
  • Electrolyte: 1 M NaPF6 in EC:DMC:EMC = 1:1:1 with 1.0wt% FEC.
  • Counter electrode: Sodium chip, CR2032 coin cell case

Coulombic efficiency

  • 81.0 %
 Material Safety Data Sheet
  • If you have purchased an MTI product, look for GHS elements of pictograms, signal word hazard phrases, codes, etc. Please click to download SDS Information.
Application Notes
  1. Please click to see Procedure for Preparing Anode & Cathode Electrode Slurry.
  2. Please keep the powder in a vacuum box to avoid moisture.
