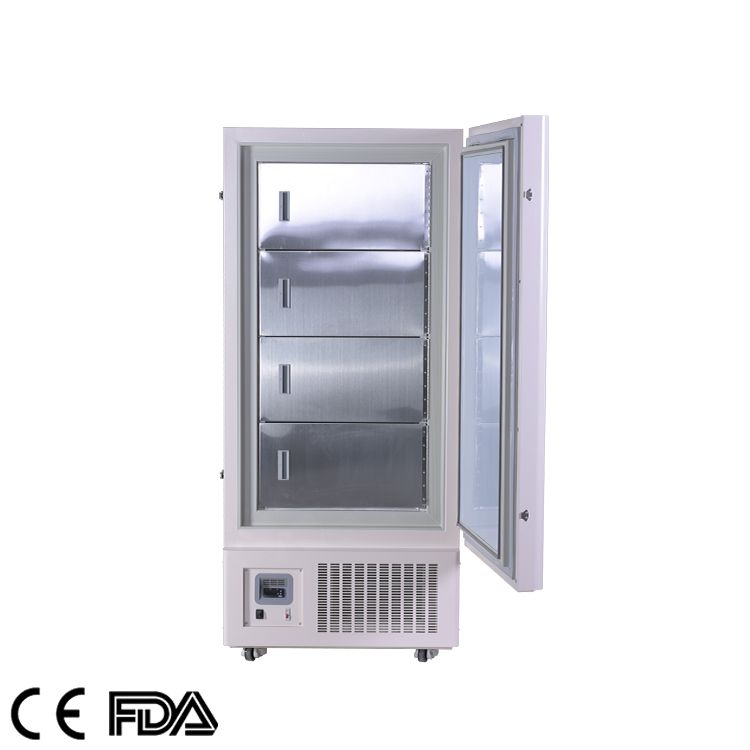

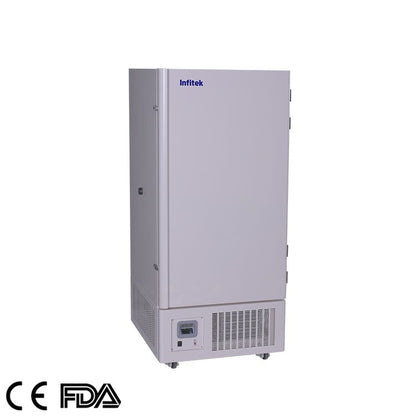

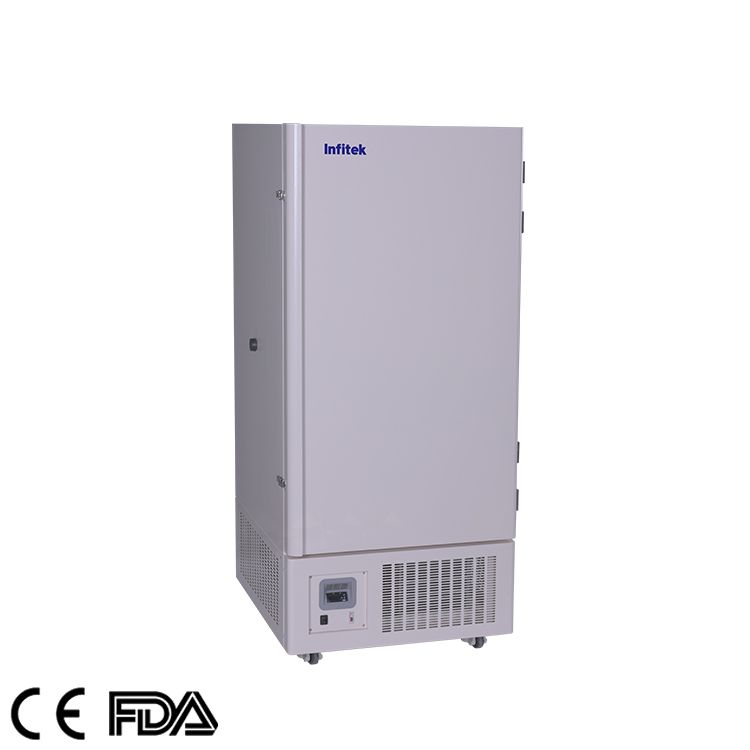

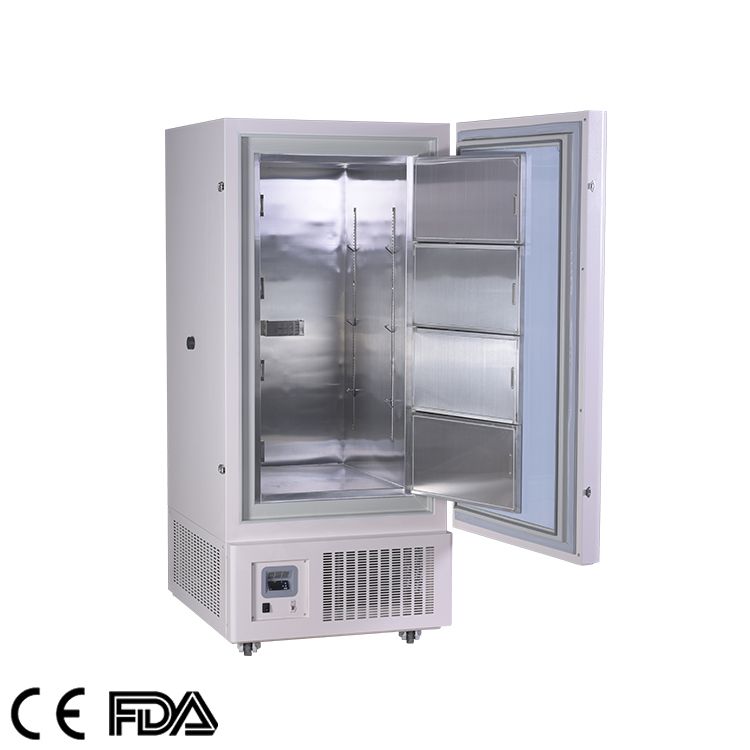

Low Temperature Freezer,-45℃, Vertical Type, LF45-408
Low Temperature Freezer,-45℃, Vertical Type, LF45-408
- Capacity: 408L
- Temperature range: -15℃~-45℃, adjustable
- Defrost: Manual
- Refrigerant: Mixed-gas (CFC Free)
- PTC sensor
Product Features:
Temperature Control
1. The temperature difference between start-up and shutdown can be set;
2. High and low temperature alarm function, alarm temperature value can be set as required.
Humanized design
1.Built in stainless steel shelf, easy to use and to clean.
2.Food grade stainless steel liner, never rusty, safe and secure.
3.Heavy duty caster design, easy to move.
4.Safety door lock is designed to prevent random opening.
5.Wide voltage band design, suitable for 187V ~ 242V AC voltage.
Refrigeration system
1.Super thick foam layer, double sealing design of door body, effectively protect the temperature inside the box.
2.Optimized self replicating cooling system, imported compressor, strong and efficient refrigeration capacity.
3. Reasonable design of evaporator ensures the effective flow of cooling dose and good temperature uniformity in the box.
4.Adopt German EBM fan, stable performance and low noise.
Safety system
1. It has perfect alarm system with buzzer sound and light flashing alarm function.
2.Multiple protection functions (frequent start-up protection, refrigeration system keeps running in case of sensor failure)
Application
It is mainly used in scientific research institutions, ultra-low temperature experiments of special materials, electronics industry, chemical industry, military industry, university experiments, biological engineering, ocean fishing, etc.
Specifications:
Model | LF45-408 | |
---|---|---|
Capacity (L) | 408 | |
Dimension (W*D*H) |
Internal (mm) | 550*630*1140 |
External (mm) | 850*960*1860 | |
Temperature | Range (℃) | -15~ -45, adjustable |
Sensor | PTC | |
Controller | Microprocessor | |
Cooling System |
Refrigerant | Mixed-gas (CFC Free) |
Defrost | Manual | |
Compressor (Qty) | (SECOP)DANFOSS/1 | |
Display | Digital display | |
Audible& Visible Alarm |
High/Low temperature | Standard |
High ambient temperature | Optional(LCD) | |
Sensor error | Standard | |
Abnormal voltage | Optional(LCD) | |
Low battery | Optional(LCD) | |
Power failure backup | Optional(LCD) | |
Door ajar | Optional(LCD) | |
Material | External | Electro-galvanized steel with antimicrobial powder coating |
Inner door | Stainless steel, grade 304 | |
Casters | Standard | |
Temperature recorder | 4 | |
Remote alarm port | Optional | |
Test hole (Qty) / Diameter (mm) | 1/18 | |
Shelves / Drawers (Qty) | Shelves / 3 | |
Sound Emission (dB) | <60 | |
Electricity | Voltage / Frequency | 220V/50Hz |
Consumption (W) | 420 | |
N.W. / G.W. (kg) | 200/250 | |
Shipping Dimension (W*D*H) (mm) | 935*1030*2030 |
