Mobile Fume Extractor PAF-250 – Portable Air Filtration System
Mobile Fume Extractor PAF-250 – Portable Air Filtration System

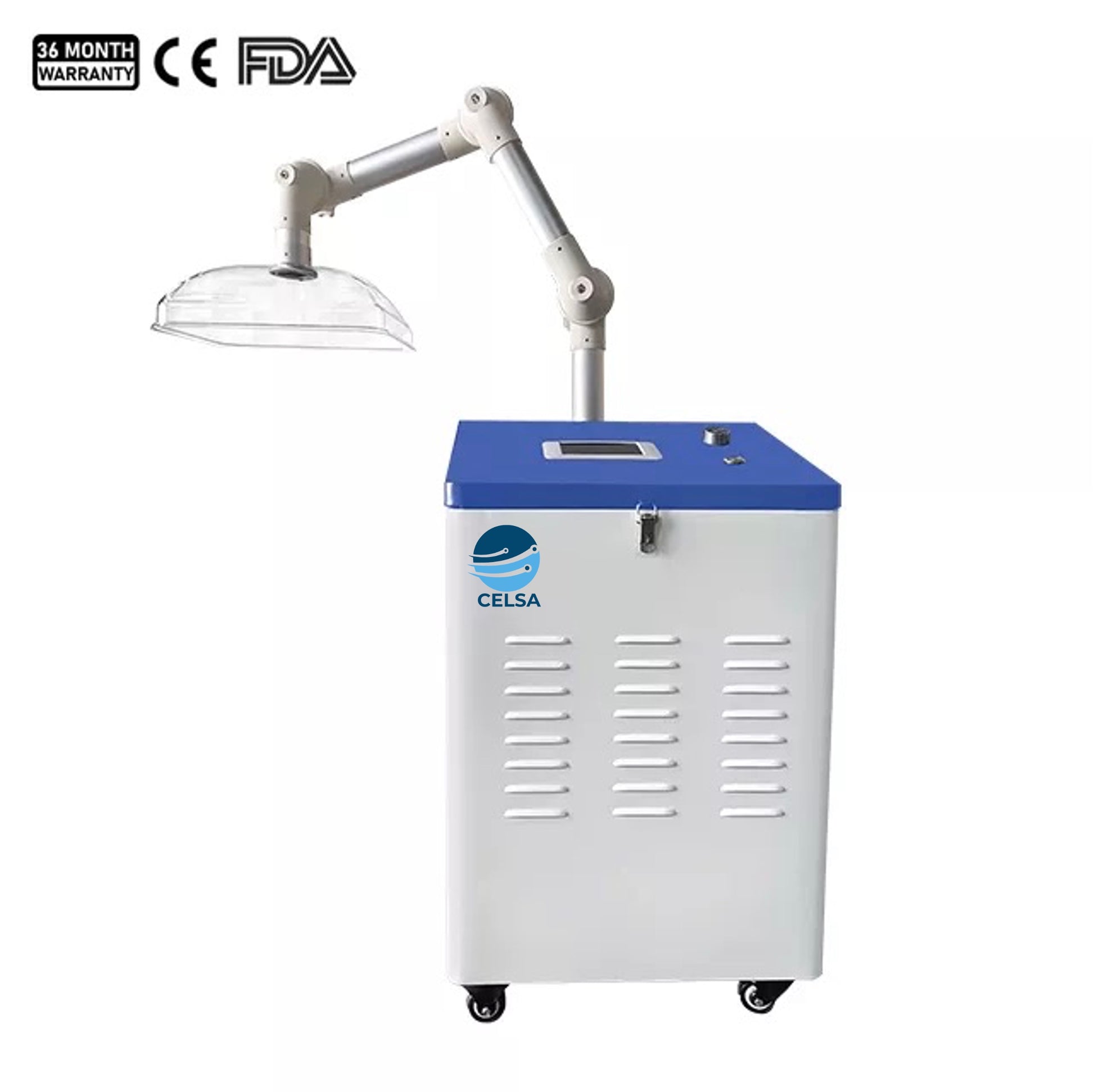

The PAF-250 mobile fume extractor is a versatile and portable solution designed to remove harmful fumes, dust, smoke, and airborne contaminants from the air. It is ideal for use in laboratories, welding, manufacturing, and other environments where pollutants are generated during processes such as welding, cutting, or chemical handling.
Airflow Volume: 240 m³/h
HEPA Filtration: ≥99.995% efficiency at 0.3 μm
Control System: 7-inch LCD touchscreen with real-time monitoring
Noise Level: ≤50 dB
Standard Accessories: LCD touchscreen, HEPA filter, pre-filter, 4× casters (2 with lock)
Product Overview

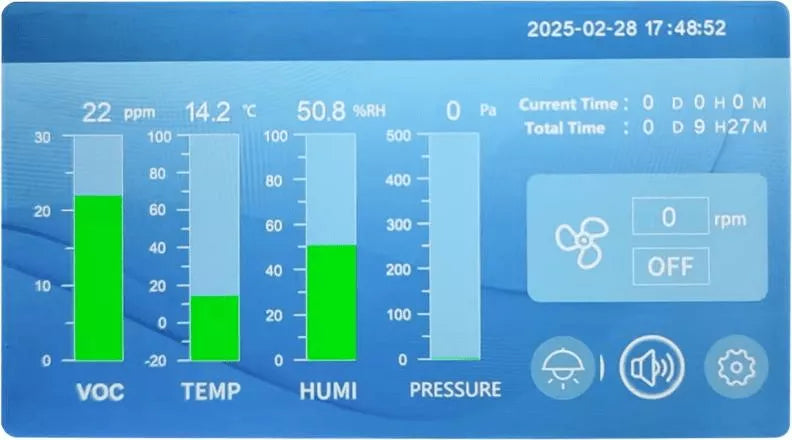

Equipped with a 7-inch LCD touchscreen, the system provides real-time monitoring of temperature, humidity, air velocity, and VOC concentration, along with an integrated alarm system for safe operation.
The advanced multi-stage filtration system, including a high-efficiency HEPA filter, ensures effective removal of fine particles and hazardous gases, helping maintain a clean and safe working environment.
Specifications
| Model | PAF-250 |
|---|---|
| External Size (W×D×H) | 460 × 460 × 700 mm |
| Airflow Volume | 240 m³/h |
| Exhaust Duct Diameter | 90 mm |
| Control System | 7-inch LCD touchscreen with real-time monitoring and alarm |
| Filtration System | HEPA filter (≥99.995% efficiency at 0.3 μm) |
| Blower | PSC blower, 24V, low noise, no spark |
| Power Supply | 220V ±10%, 50Hz |
| Power Consumption | 30 W |
| Electric Current | 1.2 A |
| Noise Level | ≤50 dB(A) |
| Operating Temperature | -30°C to 70°C |
| Construction | Electro-galvanized steel with antimicrobial powder coating (≥1.2 mm thickness) |
| Net Weight | 67 kg |
| Gross Weight | 87 kg |
| Shipping Size | 650 × 750 × 950 mm |
| Shipping Volume | 0.5 m³ |
Key Benefits
- Portable design for flexible use across workstations
- High-efficiency filtration for particles and hazardous gases
- Real-time monitoring with built-in alarm system
- Quiet operation for comfortable working environments
- Durable, corrosion-resistant construction
Operating Features

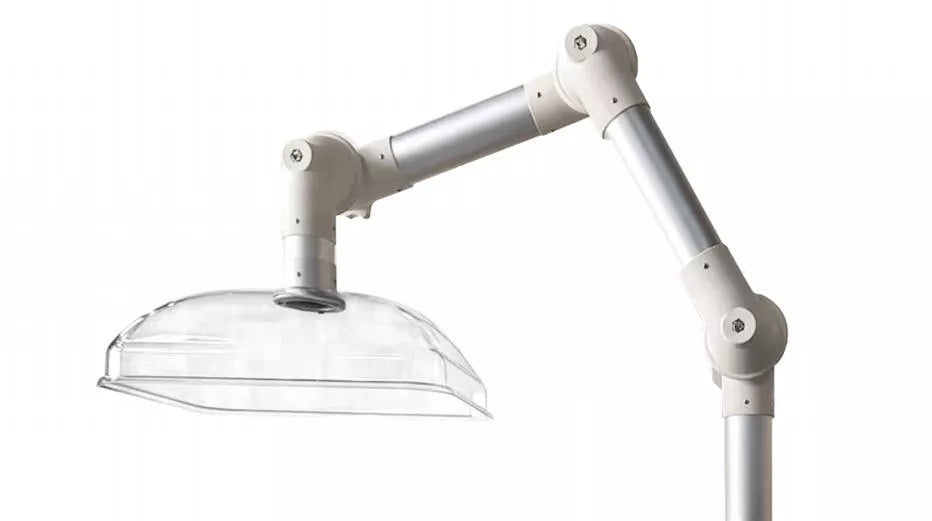

- Adjustable aluminum alloy exhaust arm for flexible positioning
- Uniform airflow with front and rear air outlets

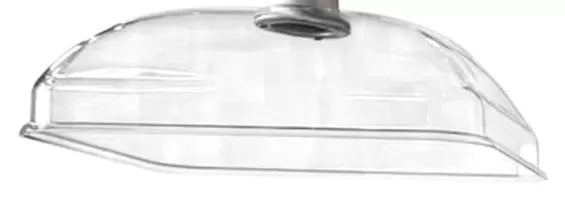

- Acrylic exhaust canopy for effective negative pressure capture
- Anti-electromagnetic interference power interface
- Multi-stage filtration compatible with optional gas filters
