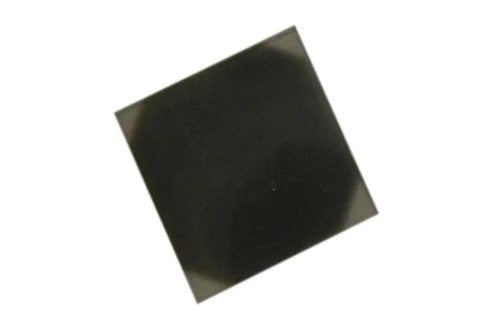

One Side (300-400) nm YBCO Film on SrTiO3 (100) 10x10x0.5 mm substrate
One Side (300-400) nm YBCO Film on SrTiO3 (100) 10x10x0.5 mm substrate
Main Specifications of HTS Film
| Epitaxial thin Film Composition | <100> YBCO |
| Film dimensionboth for one side or double side film | YBCO / LaAlO3 10x10 mm ~ 3" dia.YBCO / LSAT 10x10 mm ~ 2" dia.YBCO / Al2O3 10x10 mm ~3" diaYBCO / STO 10x10 mm ~ 1" dia. |
| Epitaxial FWHM | < 0.2 o |
| Critical Transition Temperature Tc | 90 K+/-5% |
|
Transition Temp. range ΔTc |
< 0.5 K |
| Critical Current Jc | 2~3 MA/cm2 @ 77K 0T |
| Surface Resistivity Rs | < 1 m Ohm @ 10 GHz, 77K, 0T |
| Thin film thickness |
100 ~ 500 nm |
| Uniformity for 2" wafer |
Thickness 300-400nmTc 86K- 90K Jc 3 +/-0.5 MA/cm2 @ 80% wafer center. Note: Must store the sample in dry box and vacuum oven , other wise Tc may be lower. Anealing sample at 500oC for < 30 minute may recover Tc |
| Package | Sealed in Vacuum in a plastic box and bag. |
 |
 |
Note: YBCO is very sensitive to moisture, and must be stored in Desiccator box.
MPN: FmYBCOonSTOa101005S1FT300nm
