OrigaFlex Range Multi-Channel Potentiostat With Impedance For Electrochemical Measurements
OrigaFlex Range Multi-Channel Potentiostat With Impedance For Electrochemical Measurements
Description:
- A modular suite of potentiostats, galvanostats, and impedance analyzers designed for electrochemical research, teaching, and industrial applications.
-
Key Features:
- Current ranges from ±500 mA to ±10 A
- Voltage control up to ±15 V with compliance voltage of ±20 V
- Optional EIS module (10 µHz – 5 MHz)
- ZRA method for corrosion and battery studies
- High accuracy (<0.1% FSR) and ultra‑fine resolution down to 150 fA
-
Modular Design:

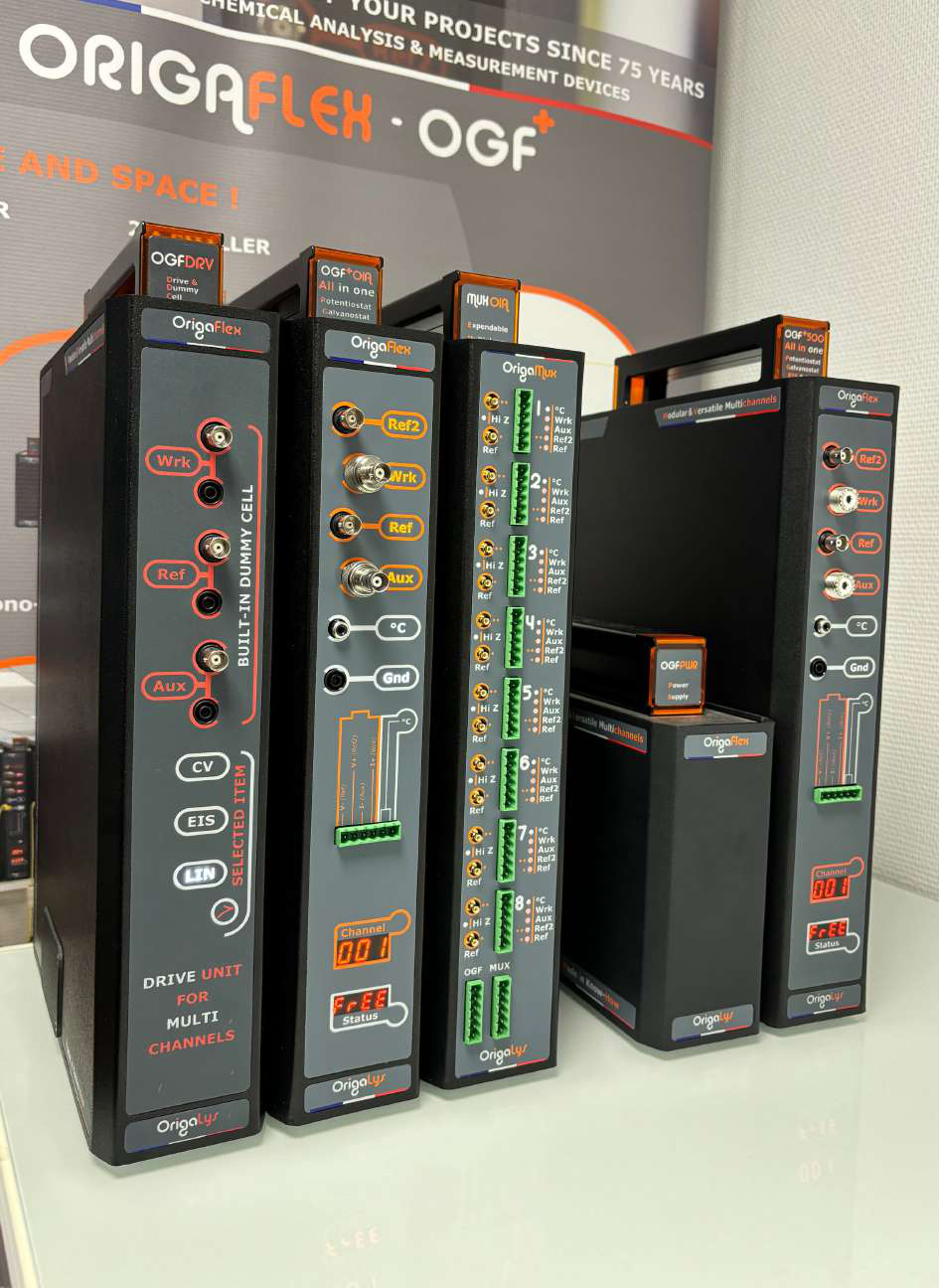

- Combine multiple modules (500 mA, 1 A, 5 A, 10 A) into one system
- Expand with OrigaMux multiplexer for up to 72 sequential cells
- Flexible configurations: single-channel, multi-channel, or bi-potentiostat setups
-
Software & Connectivity:
- Controlled via OrigaMaster 5 (USB) and OrigaViewer 2 (Ethernet)
- Intuitive protocol design, real-time monitoring, and advanced analysis tools
-
Applications:
- Batteries, fuel cells, corrosion studies, sensors, electrocatalysis, and teaching labs
- Trusted Worldwide: Used by leading institutions such as CERN, CNRS, CEA Paris-Saclay, Cardiff University, and JAIN University.
- Options & Accessories: OrigaTrod kits, OrigaDiff, battery holders, external EIS modules, RRDE compatibility
|
OrigaFlex |
||||
|
TECHNICAL SPECIFICATIONS |
OGF500mA |
OGF01A |
OGF05A |
OGF10A |
|
Potentiostat |
Yes |
|||
|
Galvanostat |
Yes |
|||
|
Maximum current |
±500 mA |
±1 A |
±5 A |
±10 A |
|
Compliance voltage |
±20 V |
|||
|
Max. applied potential |
±15 V |
|||
|
Potential resolution |
0.003 % |
|||
|
Potential accuracy |
< 0.1% FSR (Full Scale Range) |
|||
|
Voltage range |
±15 V |
|||
|
Maximum scan rate |
200 V/s |
|||
|
Current ranges |
9 (14 with low current option) |
9 (13 with low current option) |
6 (11 with low current option) |
6 (11 with low current option) |
|
With standard board |
±5 nA to ±500 mA |
±10 nA to ±1 A |
±50 μA to ±5 A |
±100 μA to ±10 A |
|
With low current option |
1 pA to 10 nA |
|||
|
Current accuracy |
< 0.1% FSR |
|||
|
Current resolution |
0.003 % FSR (Best: 150 fA) |
0.003 % FSR (Best: 300 fA) |
0.003 % FSR (Best: 1.5 nA) |
0.003 % FSR (Best: 3 nA) |
|
Input impedance |
1 TΩ (// 20 pF) |
|||
|
EIS |
10 μHz – 5 MHz with OGF+EIS |
|||
|
Interfaces |
Ethernet, USB 2.0 |
|||
|
Acquisition time |
> 100 μs |
|||
|
IR compensation |
Yes, manual and automatic Static |
|||
|
Electrodes connections |
2, 3, 4 |
|||
|
A/D converter |
16 bits |
|||
|
Floating option |
Versatile connection |
|||
|
Filters |
1 μs to 1 s, analog, anti-aliasing filter (50 Hz / 60 Hz) |
|||
|
Dimensions (DxWxH) |
300 × 85 × 450 mm |
300 × 120 × 450 mm |
300 × 170 × 450 mm |
|
|
Power requirements |
88–264 Vac, 47–63 Hz, 30 VA |
88–264 Vac, 47–63 Hz, 40 VA |
115–230 Vac, 47–63 Hz, 150 VA |
|
|
Weight |
4.55 kg |
8 kg |
16 kg |
|
|
Software |
OrigaMaster (USB 2.0), OrigaViewer (Ethernet) |
|||
|
Cable length |
On demand |
|||
|
Temperature control |
-10°C to 105°C (14°F to 221°F) |
|||
|
Auxiliary inputs |
1 with OGF / 2 with OGF+ |
|||
|
Bandwidth |
1 MHz |
100 kHz |
||
|
Analog I/O |
Yes, 1 |
|||
