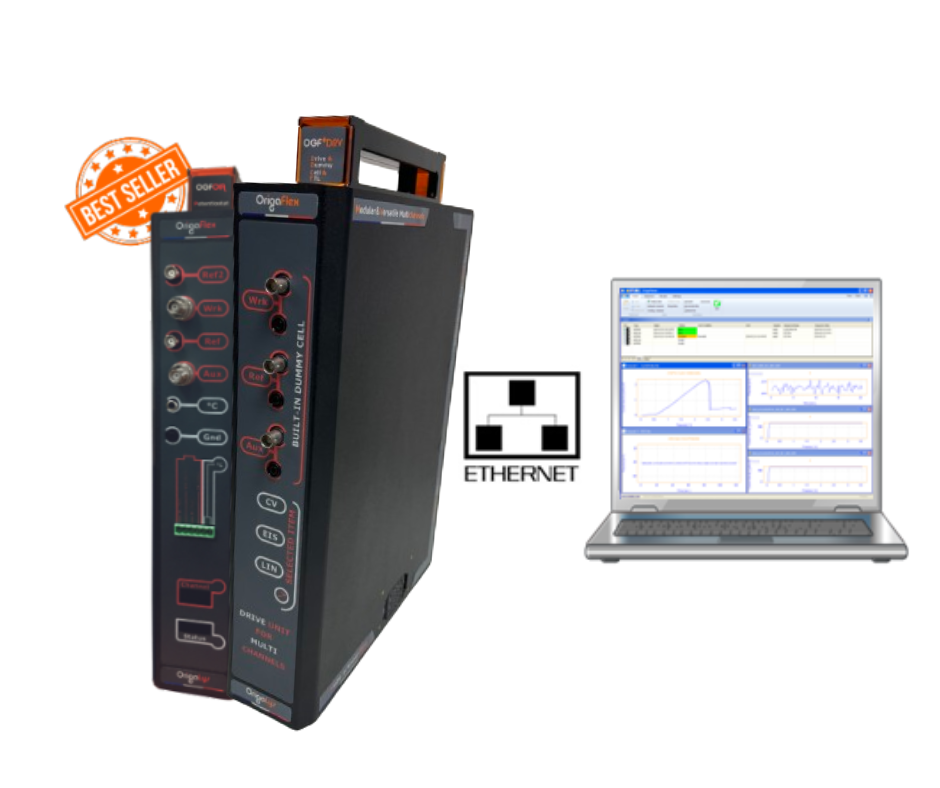

Origalys OGF⁺01A + OGF⁺DRV | Potentiostat/Galvanostat with EIS, ZRA & Drive | Complete Electrochemical Testing Pack

Origalys OGF⁺01A + OGF⁺DRV | Potentiostat/Galvanostat with EIS, ZRA & Drive | Complete Electrochemical Testing Pack

Regular price $10,980.00
Regular price $18,300.00 Sale price $10,980.00
Sale Sold out

Description:

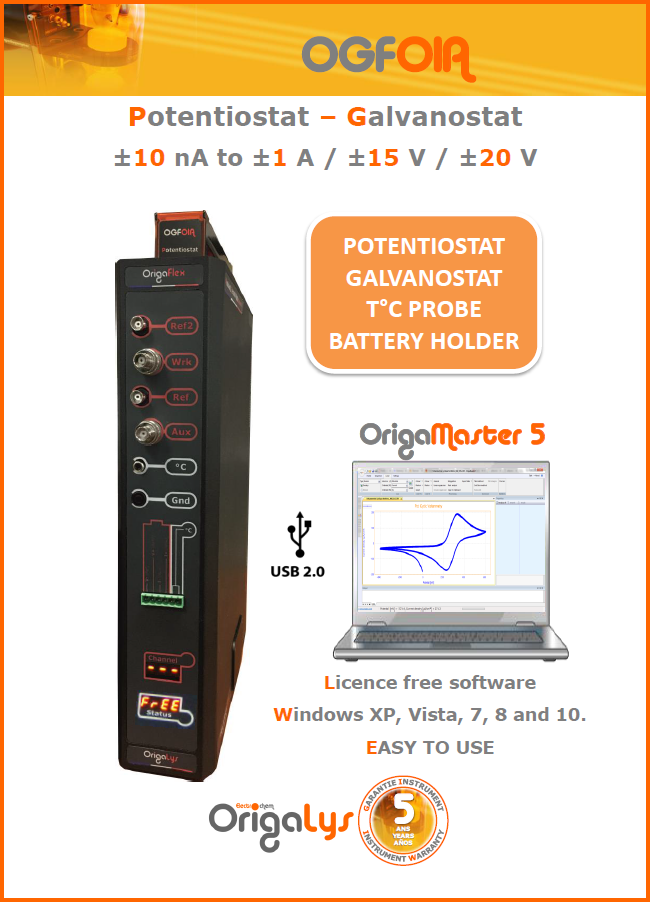

The Origalys OGF+01A is a versatile all-in-one Potentiostat/Galvanostat equipped with Electrochemical Impedance Spectroscopy (EIS) and Zero Resistance Ammeter (ZRA) functionalities. Designed for both research and teaching, it delivers reliable performance for a wide range of electrochemical applications, including corrosion studies, battery and fuel cell testing, and sensor development.

This package also includes the OGF+DRV module (Drives, Dummy Cell & TTL interface), providing users with added flexibility for simulation, validation, and integration into custom setups. Together, they form a complete solution for laboratories and researchers seeking accuracy, ease of use, and expandability.

Included in this Pack:

  • OGF⁺01A module – Potentiostat, Galvanostat, Battery Cycling channel (±1 A)
  • OGF⁺DRV module – Drives, Dummy Cell & TTL interface
  • Origaccess Cable Kit – Complete set of essential connectors and adaptors:
    • BNC/Banana 2 mm, Black, 1 m × 1
    • BNC/Banana 2 mm, Red, 1 m × 1
    • BNC/Banana 2 mm, Green, 1 m × 1
    • BNC/Banana 2 mm, Yellow, 1 m × 1
    • Alligator clamps 2 mm (Green, Black, Red, Yellow), isolated × 4
    • Banana 4 mm Male / Banana 2 mm Female adaptors × 4
    • UHF/BNC adaptors × 2

Functions (OGF⁺01A):

  • Potentiostat
  • Galvanostat
  • Temperature measurement
  • Battery holders connector
  • Ground (GND) connection

Functions (OGF⁺DRV):

  • Multi-channel configuration
  • Controls up to 10 channels up to a maximum of 20A
  • Power supply - Channel control - Integrated dummy cell
  • Ethernet / USB communication
  • OM5 - OV2 software
  • TTL communication - RS232
  • Control of several external instruments: rotating electrode (RDE), magnetic stirrer, thermostat bath, solar simulator, climatic chamber, etc.

The multi-channel system is controlled via Ethernet with the intuitive OrigaViewer software, making it simple to configure and operate in both single and multi-channel systems.

Specifications (OGF⁺01A):

  • Maximum current: ±1 A
  • Current range: ±10 nA to ±1 A
  • Current resolution: 0.003 % (best: 300 fA)
  • Current accuracy: < 0.1 % of full scale
  • Compliance voltage: ±20 V
  • Applied potential: ±15 V
  • Potential resolution: 0.003 %
  • Potential accuracy: < 0.1 % of full scale

Key Benefits:

  • All-in-one Potentiostat/Galvanostat with battery cycling capability
  • Independent 1 A channel with high resolution and accuracy
  • Expandable with additional modules for multi-channel systems
  • OGF⁺DRV module includes Dummy Cell & TTL for testing and synchronization
  • Ethernet control with OrigaViewer software for seamless operation

Full Technical Specifications:

  • Maximum current: ±1 A
  • Compliance voltage: ±20 V
  • Applied potential: ±15 V
  • Voltage range: ±15 V
  • Potential accuracy: < 0.1 % FSR
  • Potential resolution: 0.003 % FSR
  • Current ranges: 9 (±10 nA to ±1 A) | 13 with low current probe (down to 1 pA)
  • Current accuracy: < 0.1 % FSR
  • Current resolution: 0.003 % FSR (best: 300 fA)
  • Input impedance: 1 TΩ (//20 pF)
  • Maximum scan rate: 200 V/s
  • Electrode connections: 2-, 3-, and 4-electrode configurations
  • EIS capability: 10 µHz to 5 MHz (with optional OGF⁺EIS module)
  • Interfaces: Ethernet (multi-channel) | USB 2.0 (single device)
  • IR compensation: Static (manual and automatic)
  • A/D converter: 16 bits
  • Analog I/O: 1
  • Filters: Analog (1 µs to 1 s), Digital
  • Temperature control: –10 °C to 105 °C
  • Dimensions (D×W×H): 300 × 85 × 450 mm
  • Weight: 4.55 kg
  • Power requirements: 88–264 Vac, 47–63 Hz, 40 VA
  • Software: OrigaMaster 5 (USB) & OrigaViewer (Ethernet)
