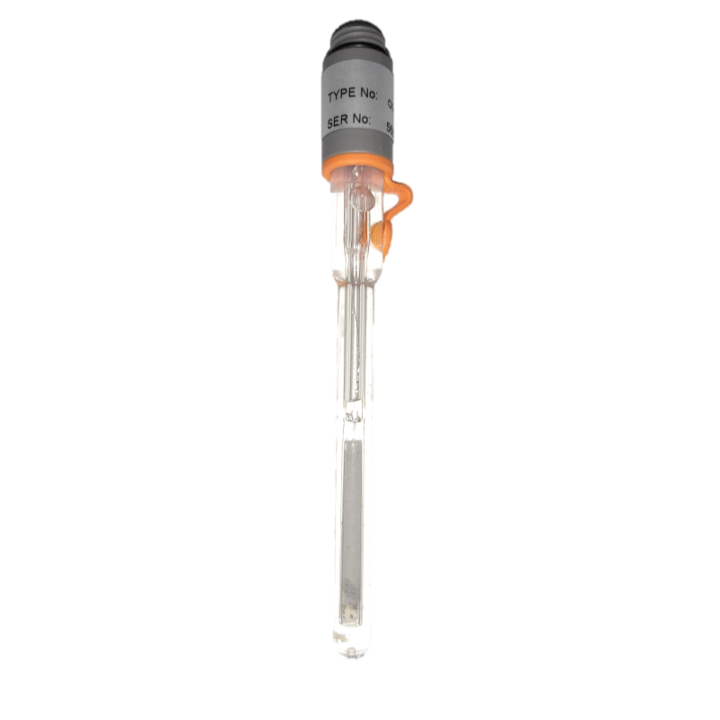

Reference electrode Hg/Hg2SO4 103mm (REF621)
Reference electrode Hg/Hg2SO4 103mm (REF621)
Why do we use reference electrodes?
The use of a reference electrode enables the comparison of the potentials of different indicator electrodes immersed in the same solution or the potential of the same indicator electrode immersed in different solutions.
A reference electrode provides a stable potential whatever the measurement conditions.
| Attribute | Details |
|---|---|
| Reference Element | Hg/Hg₂SO₄ |
| Electrolyte | Saturated K₂SO₄ |
| Temperature Range | 0°C to 60°C |
| Similar to | REF621 |
| Drawing Number | – |
| Upper Diameter | 12 mm |
| Lower Diameter | 8 mm |
| Length | 103 mm |
| Junction | Porous–Porous |
| Connection | Screw Head, S7 |
