Origalys

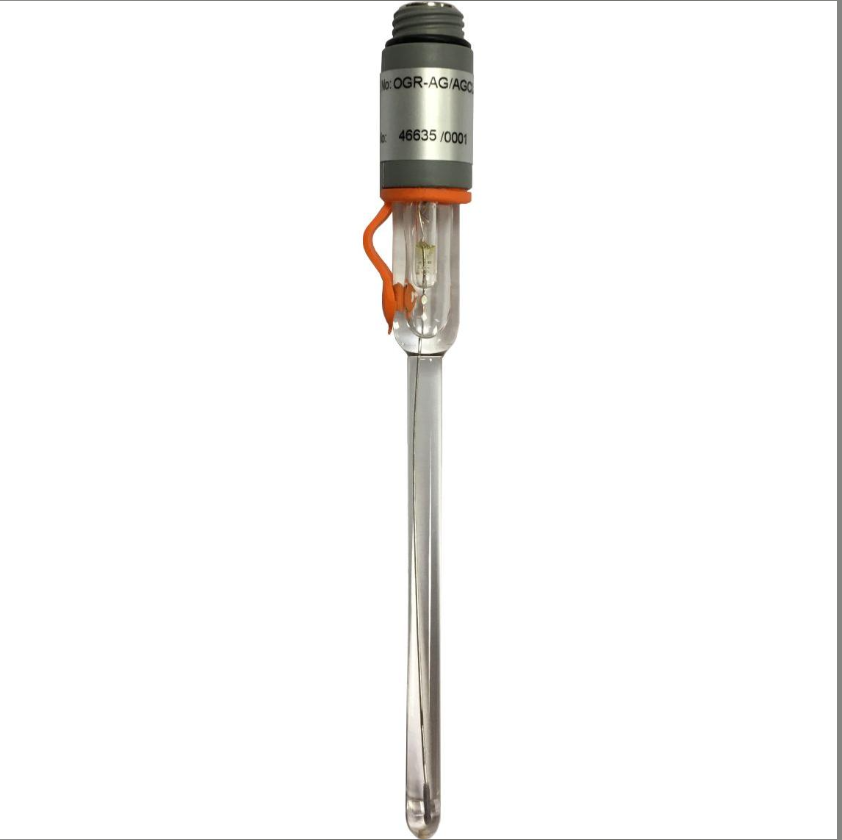

Reference Electrode Hg/Hg2SO4 120mm Grinded

Reference Electrode Hg/Hg2SO4 120mm Grinded


Why do we use reference electrodes?

The use of a reference electrode enables the comparison of the potentials of different indicator electrodes immersed in the same solution or the potential of the same indicator electrode immersed in different solutions.

A reference electrode provides a stable potential whatever the measurement conditions.



Attribute Details
Reference Element Hg/Hg₂SO₄
Electrolyte Saturated K₂SO₄
Temperature Range 0°C to 60°C
Similar to
Drawing Number
Upper Diameter 12 mm
Lower Diameter 8 mm
Length 120 mm
Junction Porous–Porous
Connection Screw Head, S7
