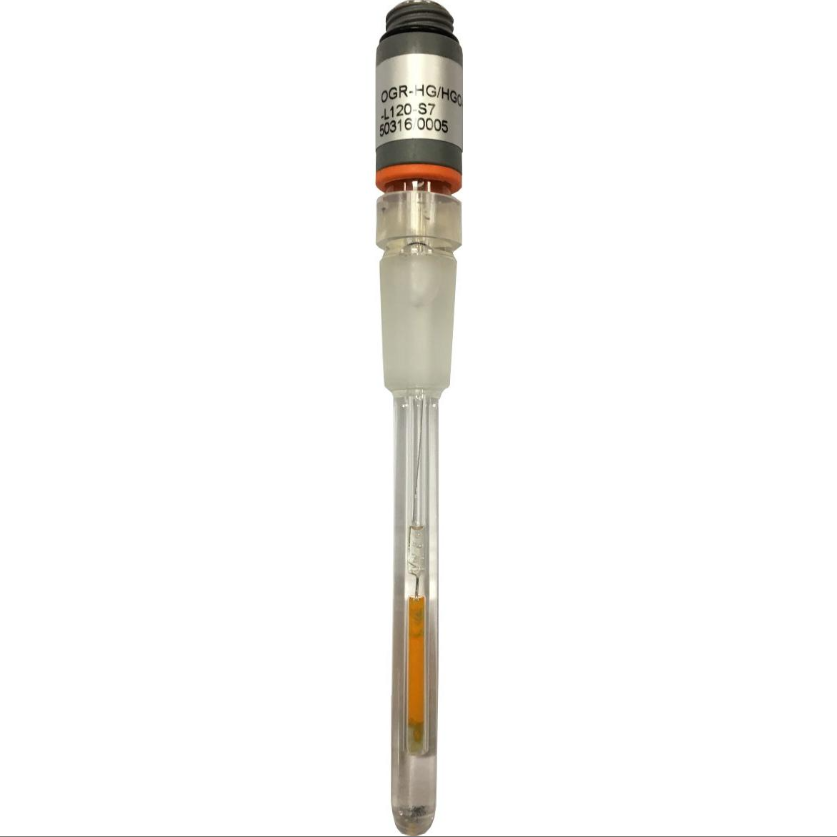

Reference Electrode Hg/HgO Grinded
Reference Electrode Hg/HgO Grinded
Why do we use reference electrodes?
The use of a reference electrode enables the comparison of the potentials of different indicator electrodes immersed in the same solution or the potential of the same indicator electrode immersed in different solutions.
A reference electrode provides a stable potential whatever the measurement conditions.
| Attribute | Details |
|---|---|
| Reference Element | Hg/HgO |
| Electrolyte | 0.1 M KOH |
| Type | E10.OGL.027 |
| Similar to | XR400 (grinded) |
| Temperature Range | –5°C to 50°C |
| Upper Diameter | 12 mm |
| Lower Diameter | 8 mm |
| Length | 120 mm |
| Liquid Junction | Porous Pin |
| Grinded | Yes |
| Connection | Screw Head, S7 |
