Origalys

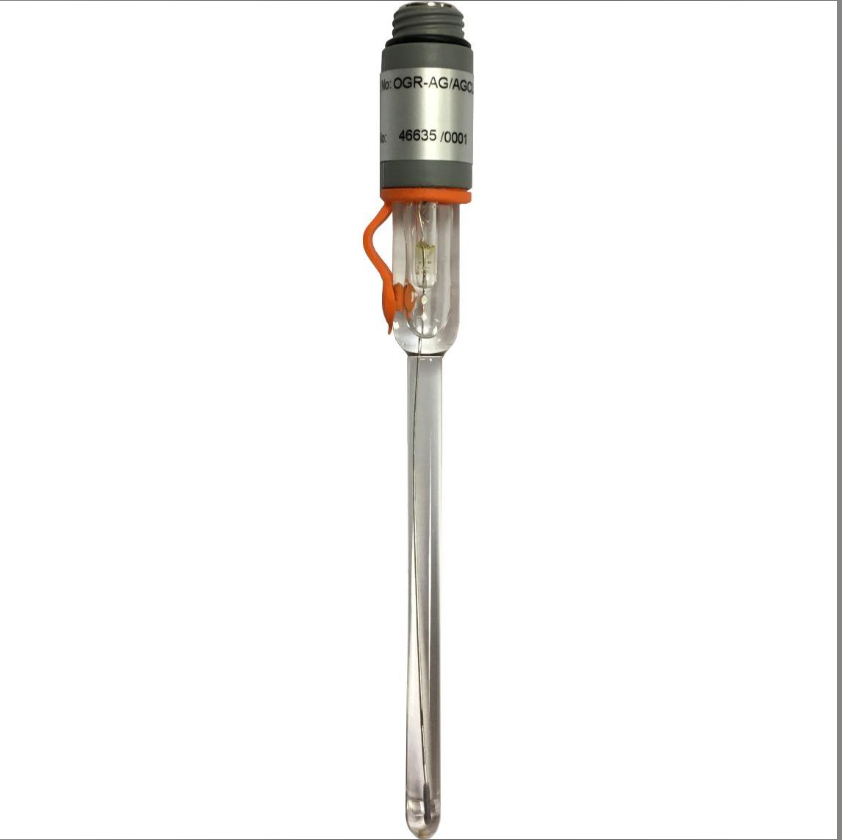

Similar Red Rod Reference Electrode
Similar Red Rod Reference Electrode
Why do we use reference electrodes?
The use of a reference electrode enables the comparison of the potentials of different indicator electrodes immersed in the same solution or the potential of the same indicator electrode immersed in different solutions.
A reference electrode provides a stable potential whatever the measurement conditions.
| Attribute | Details |
|---|---|
| Reference Element | Similar Red Rod (Ag/AgCl) |
| Electrolyte | Saturated KCl |
| Type | E13.OGL.011 |
| Similar to | REF201 |
| Temperature Range | –10°C to 100°C |
| Upper Diameter | 12 mm |
| Lower Diameter | 8 mm |
| Length | 103 mm |
| Liquid Junction | Porous Pin |
| Grinded | No |
| Connection | Screw Head, S7 |
