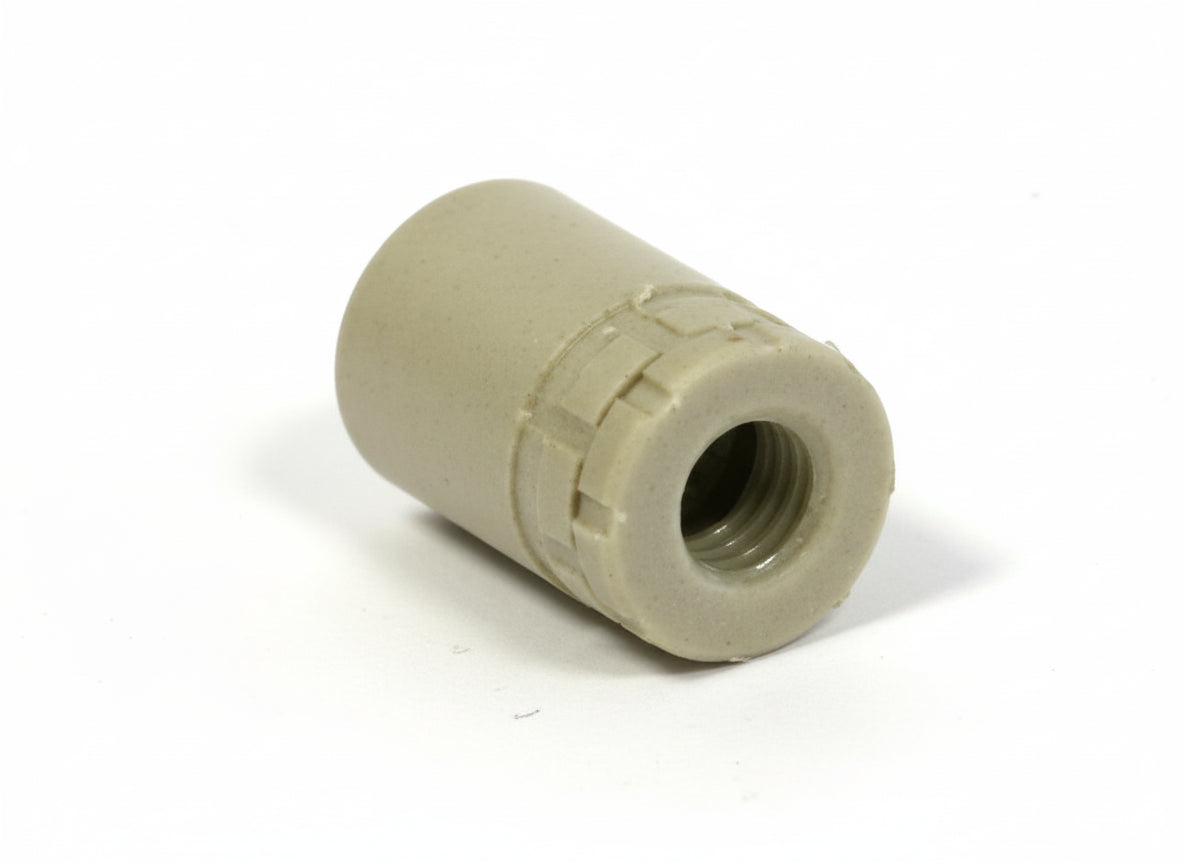

The OrigaTip Sample Holder Ø8 – Stainless Steel Contact (Titanium contact also available as an option)is a precision-engineered accessory designed for electrochemical experiments requiring stable sample mounting and reliable electrical contact. Manufactured from 316L stainless steel , it ensures durability, corrosion resistance, and consistent conductivity. This holder is compatible with OrigaTrod, StaTrod, and EDI101 electrode systems, making it a versatile tool for laboratories working with pellets and solid samples.
Delivered with a silicone O-ring for secure sealing, the holder provides excellent sample stability during measurements. For specialized applications, a PTFE O-ring option is available upon request, offering enhanced chemical resistance.
This accessory is ideal for researchers and technicians who require reproducible sample positioning and robust contact in electrochemical setups.
Specifications:
Feature
Specification
Product Code
E11OGL001CIAL
Sample Holder Diameter
Ø8 mm
Compatible Sample Thickness
1–3 mm
Contact Material
Stainless Steel 316L
Compatibility
OrigaTrod, StaTrod, EDI101
Sealing
Supplied with silicone O-ring (PTFE available on demand)
