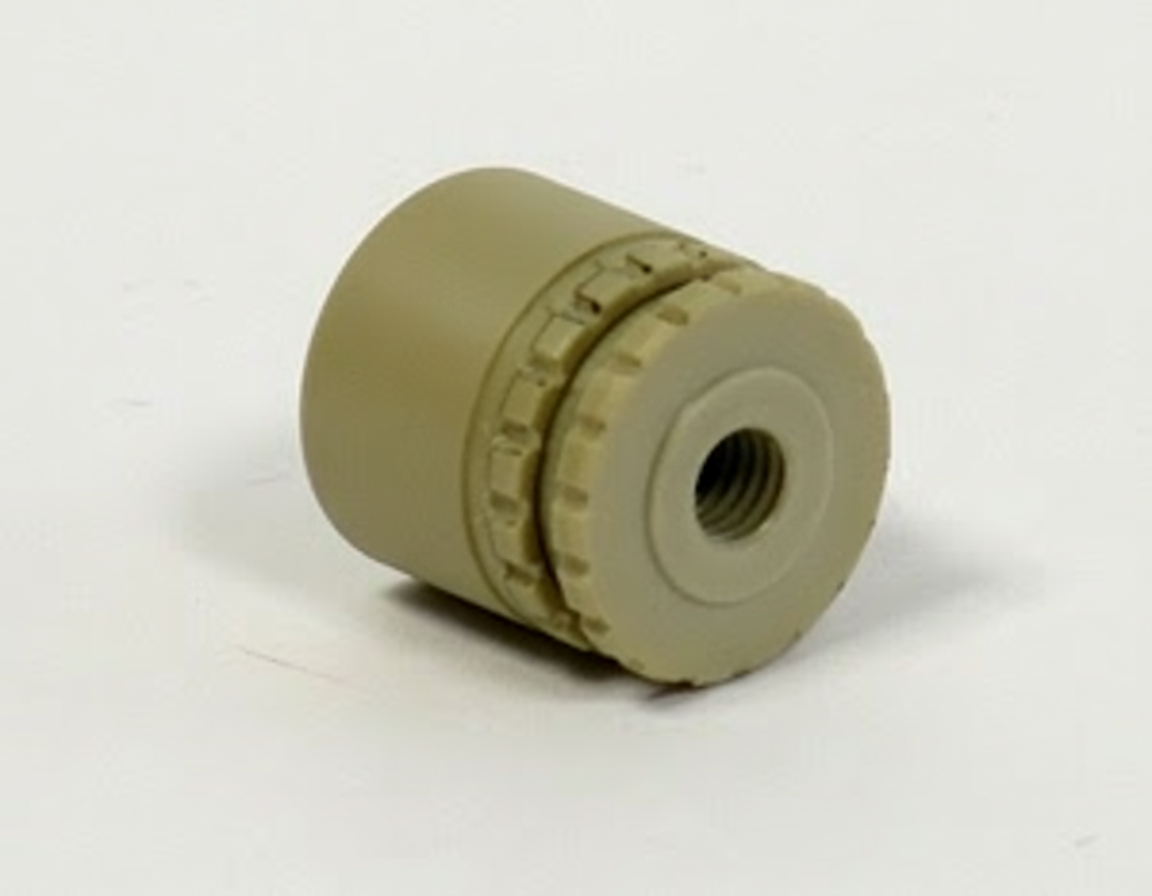

The OrigaTip Sample Holder Ø15 – Stainless Steel Contact (Titanium contact also available as an option) is a robust accessory designed for electrochemical experiments requiring precise sample mounting and reliable electrical contact. Constructed from 316L stainless steel, it offers excellent corrosion resistance, mechanical strength, and consistent conductivity.
This holder accommodates pellets and solid samples with a diameter of 15 mm and thickness between 1–3 mm, ensuring secure positioning during measurements. It is fully compatible with OrigaTrod, StaTrod, and EDI101 electrode systems, making it a versatile solution for laboratories engaged in electrochemical research.
Delivered with a silicone O-ring for effective sealing, the holder ensures sample stability and reproducibility. For specialized applications, a PTFE O-ring option is available upon request, providing enhanced chemical resistance for demanding environments.
Specifications:
Feature
Specification
Product Code
E11OGL006CIAL
Sample Holder Diameter
Ø15 mm
Compatible Sample Thickness
1–3 mm
Contact Material
Stainless Steel 316L
Compatibility
OrigaTrod, StaTrod, EDI101
Sealing
Supplied with silicone O-ring (PTFE available on demand)
